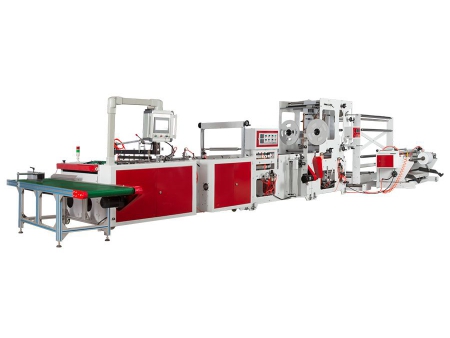

Automatic Side Seal Garbage Bag Making Machine
This fully automatic side seal garbage bag making machine is designed with sophisticated technology, featuring an easy-to-use Weinview touch-screen operation system from Taiwan, Delta inverter and servo motor.
The raw material is put through automatic web guiding, triangle folding, bottom gusseting, top folding, poly stringing, side sealing, and discharging processes before being output as finished products. It includes features such as photoelectric sensor web guide control, automatic tension control of magnetic powder, automatic counting, automatic machine stop if no raw material is present, and electric-eye tracking. As a result, it is highly efficient and easy for the worker to operate.
The produced side seal garbage bags are widely used for waste disposal in homes, hotels and hospitals.
| Model | TP800G |
| Product length (height) | 250-700 mm |
| Product width | 250-600 mm |
| Bag making speed | 50-90 pcs/min |
| Top folded | 50 - 75 mm |
| Bottom inserted | 30-70 mm |
| Max. feeding width | 1600 |
| Air pressure | 5.5 Hp |
| Total power | 7.5 kW |
| Weight | 5000 kg |
| Dimension | 9000*2500*2050 mm |
This fully automatic side seal garbage bag making machine is suitable for making garbage bags used in homes, hotels and hospitals.

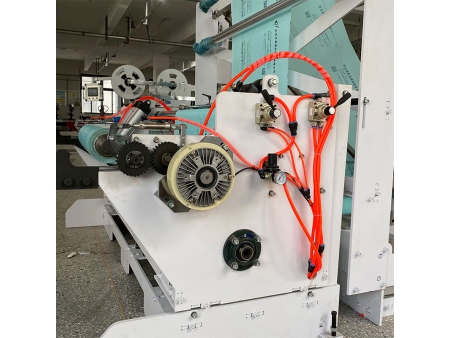

- Unwinder 1. Equipped with EPC and automatic tension control
2. Auto loading system with pneumatic control
3. Air shaft - Triangle Folding Unit
- Gusseting Unit Using a dancing roller to control the tension

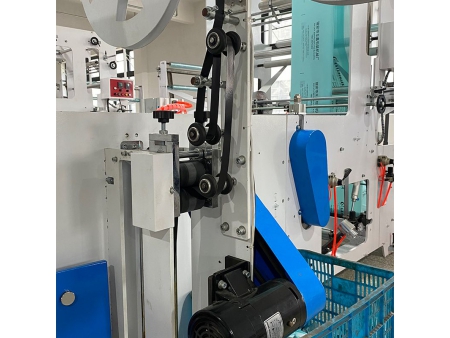

- Ribbon Through Unit Ribbon through motor

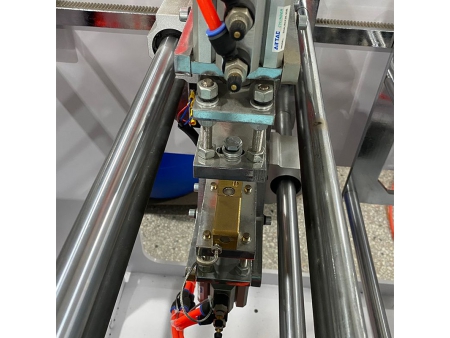

Punching device - Sealing Unit Ultrasonic side sealing bar is made of high grade copper

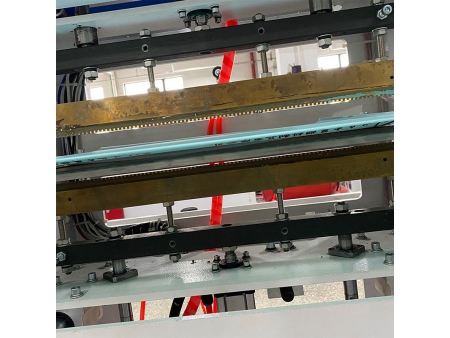

Sealing and cutting knives
Collection table - Electric parts PLC control
Control box
