Impact Extrusion Press for Aluminum Tube Making
Introduction of product

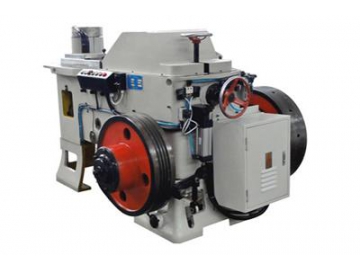

The LJD01 impact extrusion press machine is also called an impact punching machine, which can press the raw aluminum slug into standard tubes or other shaped tubes. The equipment is automatically arranged by a vibrating feeder to arrange the aluminum slugs and regularly feed them into the baiting guide rail, and the feeding manipulator accurately feeds the slugs into the stamping cavity. Under the action of a crank train and slider, the gap between punching and module hole controls the thickness of the pipe, extruding the slugs into shape through the annular gap between the die block and the punching. This completes the forming of blank tubes and stripping automatically. The output of the tubes is orderly thanks to the conveyor chain.
| suitable diameter | 11mm-22mm |
| maximum suitable length | 150mm |
| maximum production rate | 60 tubes/minute |
| motor power | 4KW |
| dimension | 2650*1500*1340mm |
| whole machine weight | 3000KG |
- The punch holder uses double bevel adjustment to make the location more accurate. The punch holder and connecting rod uses adjustable structure, which can eliminate the gap caused by the long-term wear of the equipment and ensure the long-term high-precision operation of the equipment.
- All of the key parts use high quality copper, which reduce the friction coefficient, increase wear resistance and extend service life.

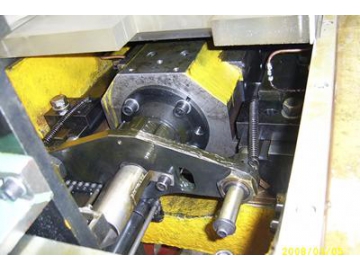

- The punching holder

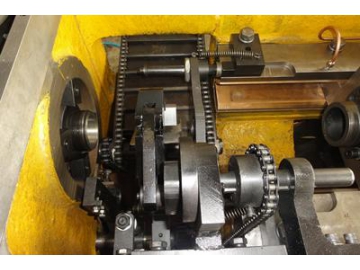

- Crank train
