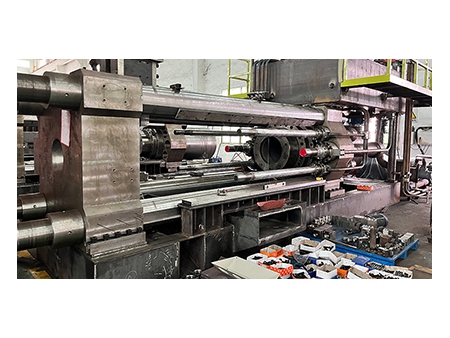

Aluminum Extrusion Press

Request a Quote

View All: http://aluminum-solution.com/aluminum-extrusion-press.html

Description

As one of the industry’s leaders in extrusion press, we provide aluminum extrusion presses with different tonnage ratings to accommodate both small and large extruded aluminum shapes. Our aluminum extrusion equipment can be used for manufacturing precise extrusions with the industry’s tightest tolerances.
In the aluminum industry, there are direct and indirect extrusion processes available for different applications. Direct aluminum extrusion press is the most commonly used based on the working principle of hydraulic press.

Technical parameters

Model	Working Pressure Mpa	Plunger Diameter mm	Side Cylinder Size mm	Size of Aluminum Billet mm	Extruder Height mm	Outlet Size (mm)	Total Power	Outside Diameter (mm)	Total Weight (T)
500T (550UST)	21	ø 520	ø 125×ø 70	ø 80×380	850	ø 110x110	72	5700×3100×2500	20
600T (660UST)	21	ø 580	ø 160×ø 120	ø 90×480	850	ø 110x110	105	6000×3200×2600	24
700T (770UST)	21	ø 620	ø 160×ø 120	ø 100×520	1030	ø 120x140	130	7900×2800×3500	38
800T (880UST)	21	ø 660	ø 180×ø 140	ø 110×530	1050	ø 130×150	132	8500×3015×3560	42
1000T (1100UST)	21	ø 750	ø 200×ø 150	ø 120×600	1095	ø 140×160	195	9660×3070×3900	53
1250T (1400UST)	21	ø 840	ø 200×ø 150	ø 140×650	1180	ø 170×200	250	11920×3230×3900	65
1400T (1540UST)	21	ø 870	ø 220×ø 150	ø 150×680	1180	ø 180×210	260	11920×3230×3900	70
1650T (1800UST)	21	ø 950	ø 220×ø 150	ø 178×800	1530	ø 210×260	315	13400×3580×4900	90
2000T (2200UST)	21	ø 1050	ø 250×ø 180	ø 200×800	1680	ø 240×300	350	1650×4000×5100	136
2500T (2750UST)	21	ø 1180	ø 250×ø 180	ø 228×1000	2030	ø 280×350	550	17500×6000×6500	250
3000T (3300UST)	28	ø 1180	ø 250×ø 180	ø 254×1000	2030	ø 338×480	780	17500×6000×6500	300
4350T (4785UST)	28	ø 1350	ø 320×ø 220	ø 280×1000	2280	ø 450×500	960	19500×6900×7500	350
5500T (6000UST)	28	ø 1500	ø 380×ø 250	ø 400×1200	2350	ø 490x620	1660	22000×8000×10000	650
8200T (9000UST)	28	ø 1780	ø 480×ø 320	ø 485×1750	2585	ø 550×800	2500	28000×9800×11000	800

Features

Dead cycle time is shortened, increasing production efficiency.
Billet loader is controlled by the servo motor, ensuring billets are fed in a faster, more precise and more reliable manner.
Extrusion press container is heated by heating pipes, providing quick heating with high heating efficiency.
The elastic deformation is significantly reduced because of a specially designed structure.
The length of tie rod and main cylinder is shortened, increasing the stability and precision of the extruder.
