Meat Bandsaw (European Standard) Manufacturer

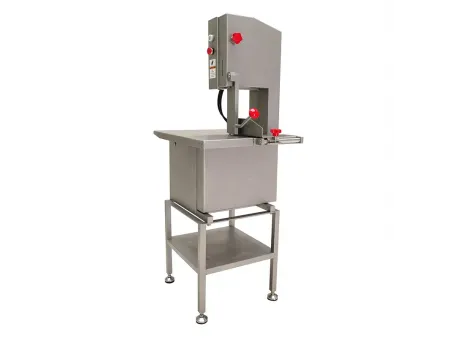

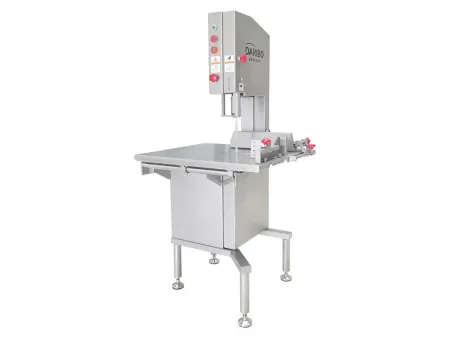

Meat Bandsaw (European Standard)

Request a Quote

View All: http://foodmachine-en.com/1-3-1-meat-bandsaw-european-standard.html

Meat Processing Equipment

Commercial meat saw for cutting meats and bones

Processing Capacity 50-800 kilograms per hour

Grinding Hole Size 3/5/9/16mm

These commercial meat saws are developed according to European hygiene and safety standards, and are designed for precise and efficient cutting of meats and bones. Our meat bandsaws offer advanced features that prioritize performance, safety, and ease of use, making them a good solution for meat processing facilities and commercial kitchens.

Applications

The European-standard meat bandsaw is designed to cut a wide range of products, including ultra-low-temperature frozen bone-in meats, boneless meats, poultry, fish, and seafood.

Meat Bandsaw, DRB-JG220

Model: DRB-JG220
Voltage: 380V 50Hz
Power: 1.1kW
Worktable size (L×W): 620×530mm
Cutting height/width: 220mm/200mm
Saw blade length: 1740mm
Dimensions (L×W×H): 530×695×1470mm
Weight: 95kg

Meat Bandsaw, DRB-JG330

Model: DRB-JG330
Voltage: 380V, 50Hz
Power: 1.5kW
Worktable size (L×W): 820×730mm
Cutting height/width: 330mm/300mm
Saw blade length: 2590mm
Dimensions (L×W×H): 890×740×1720mm
Weight: 165kg

Meat Bandsaw, DRB-JG440

Model: DRB-JG440
Voltage: 380V, 50Hz
Power: 2.2kW
Worktable size (L×W): 850×930mm
Cutting height/width: 440mm/400mm
Saw blade length: 3340mm
Dimensions (L×W×H): 920×940×1930mm
Weight: 200kg

Meat Bandsaw, DRB-JG550

Model: DRB-JG550
Voltage: 380V, 50Hz
Power: 2.2kW
Worktable size (L×W): 850×930mm
Cutting height/width: 550mm/400mm
Saw blade length: 3340mm
Dimensions (L×W×H): 920×950×2040mm
Weight: 259kg

Features

Simple operation with automatic blade tensioning and adjustment, ensuring optimal cutting performance and extending blade lifespan.
Patented wear-resistant guide blocks stabilize the blade, reduce vibrations, and minimize waste, increasing final product weight.
Fitted with a static, maintenance-free braking system stops the blade within 2-3 seconds. The meat bandsaws won’t operate if the door is open, and any door opening during operation triggers an immediate stop.
High-quality custom motor with overheat protection and reliable Omron control components, along with a low-voltage DC safety control system.
Independent electrical box with integrated wiring harness for easy maintenance and safe VDE-certified cables.
Comprehensive blade protection during use and cleaning, with anti-fall safeguards on the protective slides to prevent accidents.
Phase sequence protection prevents the meat saws from starting if the phase sequence is incorrect or a phase is missing.
Installation and maintenance are simple, helping to lower upkeep costs. The cabinet doors open fully, the material tray is removable, and the meat saw can be cleaned thoroughly with water, ensuring effective hygiene.
Customizable models available for both left-handed and right-handed users.
