Standard electric linear actuator is the most versatile type of our products, which can be applied to a variety of scenarios. It’s an ideal choice to achieve efficient and reliable linear motion control. The electric actuator is widely used in industrial automation, agricultural equipment, medical equipment and home automation and other fields. The linear actuator is robust in construction and superior in performance, providing powerful thrust and precise motion control. The use of high-quality materials and advanced manufacturing processes ensures its durability and long life. The standard electric linear actuator has the advantages of smooth operation, low noise, easy installation and low maintenance cost. Whether heavy duty applications or precision adjustments, our standard electric linear actuator can meet your needs. When considering the relationship between function and cost, our standard linear actuator is the best option in our range.
- YXN011 Standard Linear Actuator
- YXN011D Standard Linear Actuator
- YXN011E Standard Linear Actuator
- YXN011F Standard Linear Actuator
- YXN011G Standard Linear Actuator
- YXN014 Standard Linear Actuator
- YXN014D Standard Linear Actuator
- YXN030 Standard Linear Actuator
- YXN031 Standard Linear Actuator
- YXN032 Standard Linear Actuator
YXN011 Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000 N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP43 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA, FCC |

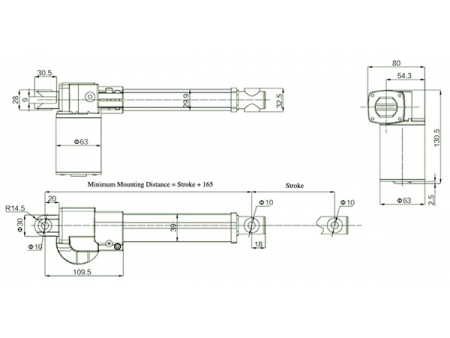

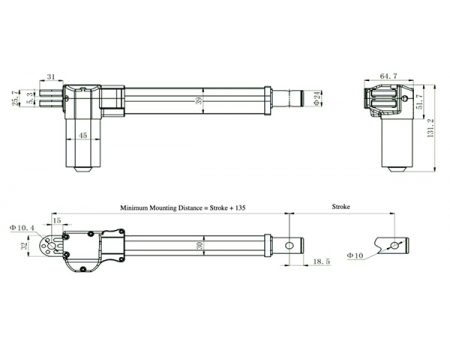

Dimensions
▴Built-in/without Hall signal
YXN011D Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000 N |
| No-load speed | 5-36 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP43 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA, FCC |

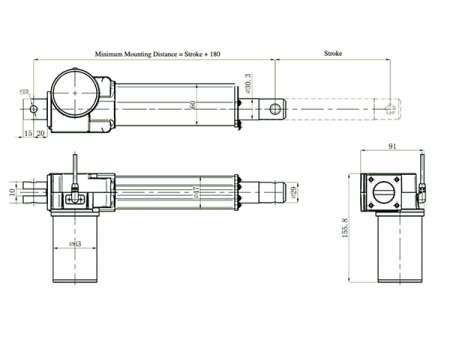

Dimensions
▴Built-in/without Hall signal
YXN011E Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 8000 N |
| No-load speed | 4-36 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ ( customized available) |
| IP grade | IP67 (in a non-motion state) |
| Stroke switch | Built-in |

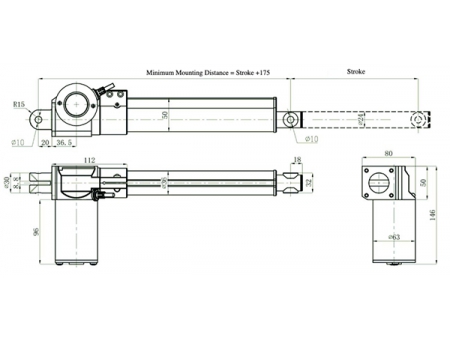

Dimensions
▴Built-in/without Hall signal
YXN011F Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 3000 N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%，2min.on/18min.off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP43 |
| Stroke switch | Built-in |
Dimensions
▴Built-in/without Hall signal
YXN011G Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 5000 N |
| No-load speed | 4-16.5 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP43 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA |
Dimensions
▴Built-in/without Hall signal
YXN014 Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 4000 N |
| No-load speed | 18mm/s (1500 N), 35mm/s (750 N) |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP20 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA, FCC |
Dimensions
▴Built-in/without Hall signal
YXN014D Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 1500N |
| No-load speed | 16mm/s (1500 N), 35mm/s (750 N) |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| Front pull mounting | Regular or 2# iron sheet |
| IP grade | IP20 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA, FCC |
Dimensions
▴Built-in/without Hall signal
YXN030 Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000 N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP65 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA |
Dimensions
YXN031 Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000 N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP43 |
| Stroke switch | Built-in |
| Certification | CE, ROHS, SAA |
Dimensions
YXN032 Standard Linear Actuator
Specifications
| Input voltage | 12V/24V DC |
| Maximum load | 6000 N |
| No-load speed | 4-30 mm/s |
| Stroke | Customized |
| Duty cycle | 10%, 2min. On/18min. Off |
| Environment temperature | -15℃-45℃ (customized available) |
| IP grade | IP65 |
| Stroke switch | Built-in |
| Certification | CE, SAA |
Dimensions
