Automatic Frozen Meat Bandsaw (into 5 Pieces) Manufacturer

Automatic Frozen Meat Bandsaw (into 5 Pieces)

Request a Quote

View All: http://foodmachine-en.com/1-3-5-automatic-frozen-meat-bandsaw-into-5-pieces.html

Meat Processing Equipment

Commercial frozen meat cutter for cutting frozen meat and bone into five pieces

Number of saw blades 4pcs

Worktable width 300mm

Segmenting frozen meat and bones into multiple pieces is often limited by traditional single-blade machines, which perform only one cut at a time. Automatic frozen meat bandsaws overcome these limitations with multiple saw wheels and synchronized conveyors, enabling five precise cuts in a single pass. Their efficient design ensures consistent results, product stability, and operator safety, making them ideal for demanding processing tasks.

Applications

Suitable for processing frozen meat products such as pork trotters and chicken legs, cutting them into multiple segments with precision and consistency.

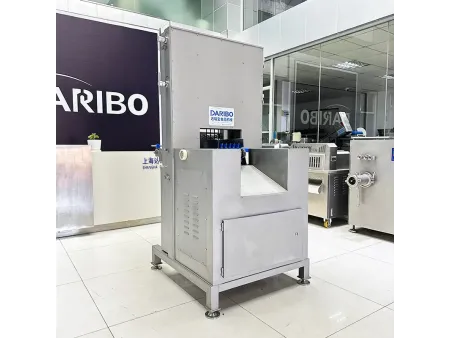

Automatic Frozen Meat Bandsaw, DRB-ZT5

Model: DRB-ZT5
Voltage: 380V, 50Hz
Power: 3.5kW
Number of saw blades: 4pcs
Worktable width: 300mm
Max. cutting height: 160mm
Cutting width: 2.5/3/3.5/4/4.5/5mm (choose one size)
Dimensions (L×W×H): 1605×1000×1950mm
Weight: 500kg

Features

The frame is made from thick 304 stainless steel with a fully enclosed structure, enhancing both durability and hygiene for long-term use.
Stainless steel guards are included to ensure operator safety during operation by minimizing exposure to moving parts.
Conveyors are independently mounted and can be easily removed for cleaning, eliminating hard-to-reach areas and maintaining hygiene.
The waterproof design allows the entire machine to be cleaned thoroughly with water, ensuring quick and effective maintenance.
Conveyor speeds are adjustable, making the meat saws versatile and suitable for cutting a variety of products.

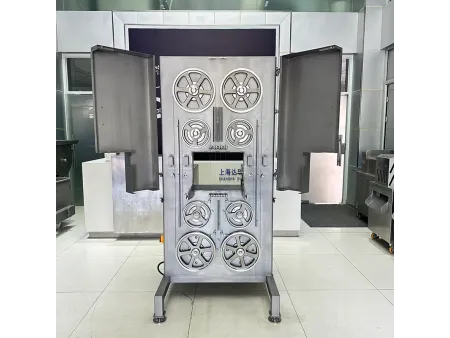

Four drive wheels, each powered independently, ensure smooth operation and help prolong the lifespan of the saw blade.
The dual-track saw wheel system prevents blade slippage, reducing wear and lowering maintenance requirements over time.
