NIR Unit/Burning Oven

Request a Quote

View All: http://jl-rubbermachine.com/1-3-1-nir-unit-burning-oven.html

Vulcanization system for curing rubber profiles

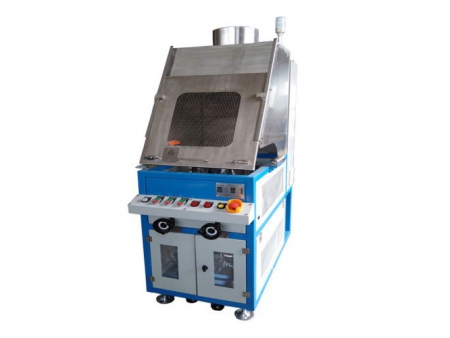

JHL-11T-X

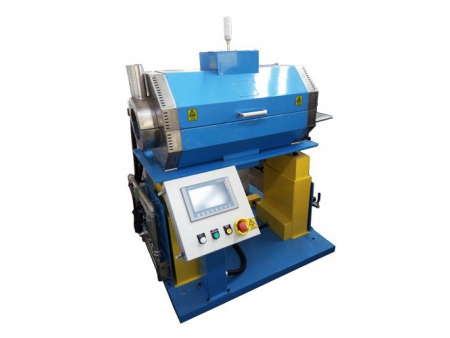

JHL-33T-X Infrared heating

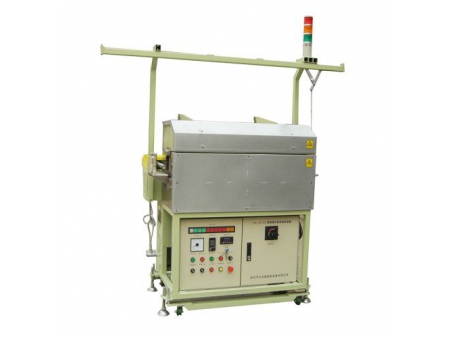

JGL-28T-X

NIR unit uses near infrared heater and burning oven uses gas heating to rapidly heat the outer surface of the extruded products, achieving rapid curing and pre-vulcanization effects on the rubber strip surface. This in turn minimizes imprints on conveyor belts, allows for curing of complex profiles, and enhances product surface quality. The oven can be used for high-temperature curing of various types of rubber profiles.

Features

Compact equipment structure with a small footprint.
Rapid heating and short heating zone.
High radiation efficiency.

Specifications

Model	Heating Power	Heating Method	Temperature Control	Max. Temperature	Note
JHL-11T-X	11kW	Three-sided infrared heating	PID	700˚C	Heat protection
JHL-33T-X	33kW	Annular distributed infrared heating	Six-channel control, with percentage setting	800˚C	Water-cooled reflector hood Electrically adjustable center height
JGL-28T-X	28kW	Gas heating	By adjusting the gas flow rate	1000℃	Manually adjustable distance and angle between the flame and the product
