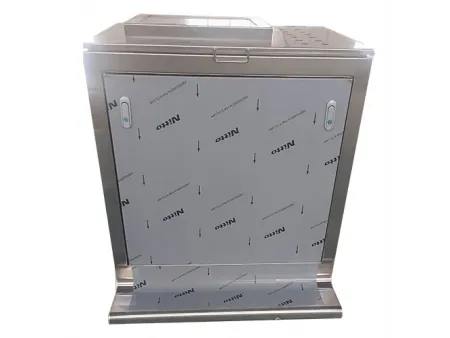

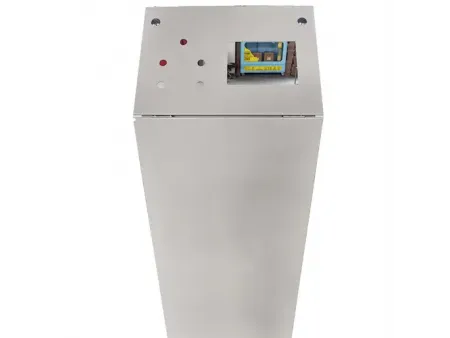

Freestanding Operator Console Enclosure (Sloped Top Enclosure)
Electrical Enclosures
The sloped-top design provides an ergonomic interface for operators, ensuring easier monitoring and control of equipment. The cabinet includes a well-designed ventilation system with high-efficiency fans and air vents, allowing effective heat dissipation to maintain a stable operating temperature and extend the lifespan of electrical components.
It also supports flexible customization, offering a range of dimensions, electrical configurations, and functional modules to suit different industrial applications.
- The top console surface can be lifted and held in place by gas spring supports for easy installation and maintenance.
- The front single or double doors are elevated approximately 25 mm above the ground to ensure smooth opening and convenience.
- Concealed hinges provide a clean appearance without protruding into the frame and allow easy removal of door panels.
- The grooved cabinet edges prevent dust and water ingress, working seamlessly with the gasket to form a complete protective seal.
- Polyurethane foaming technology ensures excellent sealing performance across the entire enclosure.
| Model | Dimensions | ||
| H (mm) | W (mm) | D (mm) | |
| | 980 | 600 | 400-480 |
| | 980 | 800 | 400-480 |
| | 980 | 1000 | 400-480 |
| | 980 | 1200 | 400-480 |
The above table shows standard reference dimensions. For non-standard or custom enclosures, production can be tailored according to customer requirements.
- One galvanized mounting plate
- Front double doors with rear panel (600 mm width models use a single front door)
- Top cover support
- Colors: RAL7032 or RAL7035 (powder-coated) or custom colors available
- Material: Stainless steel 304 / 316 or cold-rolled steel
- Surface Treatment: Phosphated base coating with external powder coating
- Thickness: Door 2.0 mm, cabinet body 1.5 mm, mounting plate 2.5 mm (galvanized)
- Protection Level: IP54
