Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

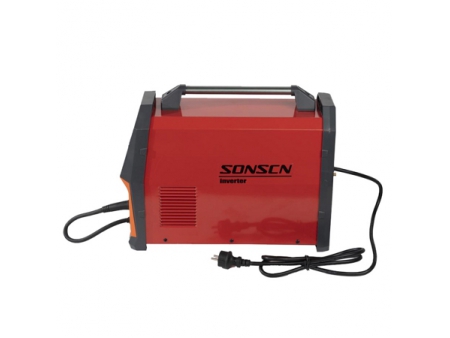

MIG 200 dual pulse synergy can handle workpieces with a minimum thickness of 0.8mm, and it's excellent arc starting performance makes welding operations very easy. In addition, this model is also capable of easily handling cellulose electrodes such as E6011 and E6010. Its superior arc stability, little splash, and deep penetration further ensure the achievement of high-quality welding.

Model MIG-200
Rated Power Voltage AC 230V±10% 50/60hz(1ph)
Rated Input Current 35A
Rated Input Power 7.7KVA
No-load Voltage 69V
Rated Duty Cycle 30%
Power factor 0.73
Efficiency 85%
Dimension 49*22*37.5cm
Weight 10.6kg
Features
  • Versatile 4-in-1 welding machine

    This multi-process welding machine is perfect for MMA, lift TIG, gas (solid) wire MIG, gasless (flux) wire MIG welding.

  • Synergy control for easy use

    With the synergy function, adjust the wire thickness, the voltage and wire feeding speed will automatically change. Even beginners can use it with ease.

  • Lift TIG capabilities

    Allows for easy arc start by touching the workpiece with a tungsten electrode, starting current and shielding gas, and then quickly lifting the TIG torch, without the need of scratching.

  • User-friendly interface

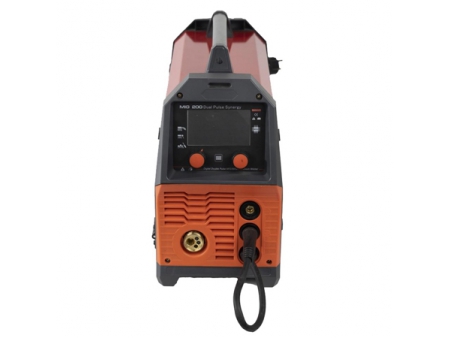

    The 3.5inch intelligent LED screen provides you with accurate data display (current, Electrode Diameter, function mode and welding type) and more choices, helps you read it easier and more clearly.

  • Premium welding performance

    it provides little splash, deep molten pool and beautiful weld shape.

Applications

Aluminum alloy welding, welding process for door and window manufacturing, fence installation, etc.
