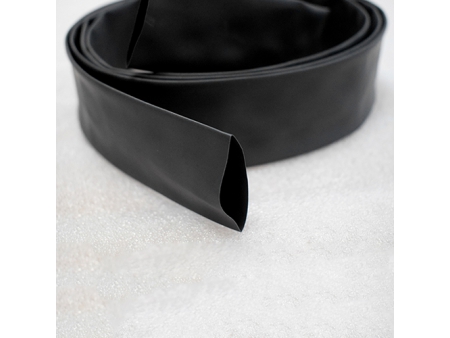

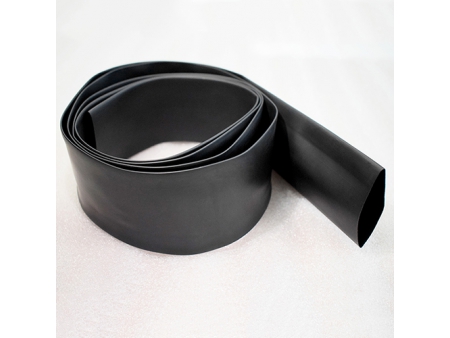

Flexible Shaft Protection Tubing
Request a Quote
CYG-TPU-CA
Non-Shrink Tubing for Automotive
- Thermoplastic polyurethane
- Temperature rating: -40°C to 150°C
- Ideal abrasion resistance
- Superior assembly performance
- Environmental compliance with RoHS requirements
Applications
- Our tubing finds extensive applications in the automotive seat industry, offering effective protection for flexible shafts
Features
- Temperature rating: -40°C to 150°C
- Ideal abrasion resistance
- Superior assembly performance
- Environmental compliance with RoHS requirements
| Properties | Test Method | Performance |
| Tensile strength | DIN EN 60684-2 | ≥30MPa |
| Ultimate elongation | DIN EN 60684-2 | ≥300% |
| Tensile strength at 100% elongation | DIN EN 60684-2 | ≥7Mpa |
| Abrasion | DIN ISO 4649 | ＜80mm³ |
| Flammability | FMVSS 302 | ≤75mm/min |
| Aging (110℃, 240h) | - | - |
| Short-term heat aging | - | - |
| Tensile strength after aging | DIN EN 60684-2 | ＜50% |
| Ultimate elongation after aging | DIN EN 60684-2 | ＜50% |
| Low temperature resistance | (-40±1)℃, (22 2)h, bending 90° | No cracking |
| Size | Inside Diameter (mm) | Wall Thickness (mm) | |
| Min. | Max. | ||
| Ø5.4 | 5.3 | 5.5 | 1.25±0.1 |
| Ø5.8 | 5.7 | 5.9 | 1.00±0.1 |
