Vertical Form Fill Seal Machine with Multihead Weigher, SK-L420/520/620/720/820-D14
Request a Quote
Our vertical form fill seal packaging line is an automatic packaging system integrating the multihead weigher, material elevator and support platform. Besides, the package fill weight is freely adjustable, making this packaging line versatile to meet customer demands of packaging various products.
Features
- Servo motor drive and double film drawing system ensure film transporting stability and bag forming smoothness.
- Multilingual operating system.
- External film unwind apparatus greatly simplifies film changeovers.
- Fully automatic process from product feeding, product measuring, bag forming, date printing to packaged bag discharge.
- International-brand air cylinder ensures the bag sealing property to prevent leak and reduce failure rate.

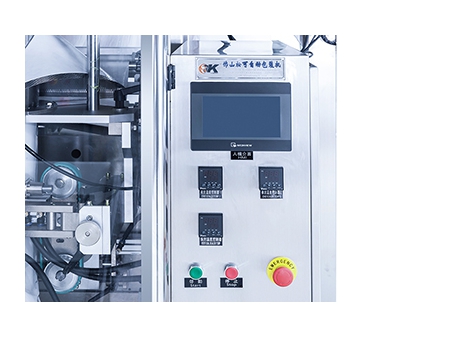

- Control panel

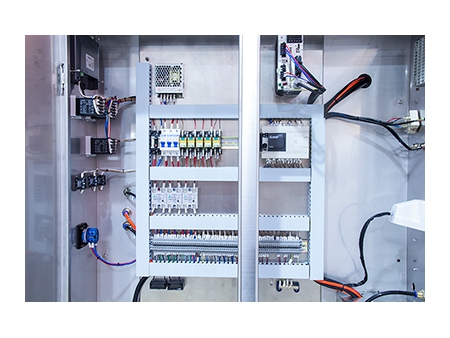

- Electronic control box
- Multihead weigher

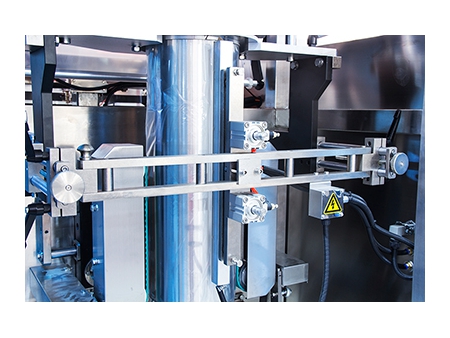

- Transverse sealing unit

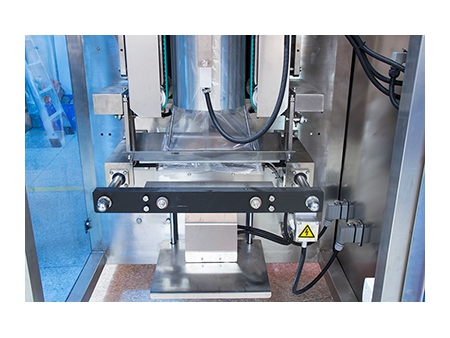

- Longitudinal sealing unit
Application
- Ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, etc.
Specifications
| Model | ||||||||
| Bag width range | 50-180mm | 80-200mm | 80-200mm | 100-250mm | 150-300 mm | 180-350 mm | 200-400 mm | 200-500mm |
| Bag length range | 80-240mm | 80-300mm | 80-300mm | 80-350mm | 100-400 mm | 100-500 mm | 100-600 mm | 100-700mm |
| Speed | 5-85bags/min | 5-80bags/min | 5-80bags/min | 5-70bags/min | 5-55 bags/min | 5-55 bags/min | 5-50 bags/min | 5-50 bags/min |
| Material type | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. | PE, laminations, non-woven fabric, etc. |
| Packaging machine dimensions | L1200 * W820 * H1350mm | L1100 * W925* H1650mm | L1450 * W1000 * H1650mm | L1430 * W1200 * H1700mm | L1780* W1300 * H1950 mm | L1800 * W1310 * H2050 mm | L1950* W1460 * H2550 mm | L2010* W1660 * H2750 mm |
| Machine weight | 350kg | 450kg | 500kg | 650kg | 700kg | 750kg | 800kg | 850kg |
If you are interested in this vertical form fill seal machine with multihead weigher, welcome to contact us!
