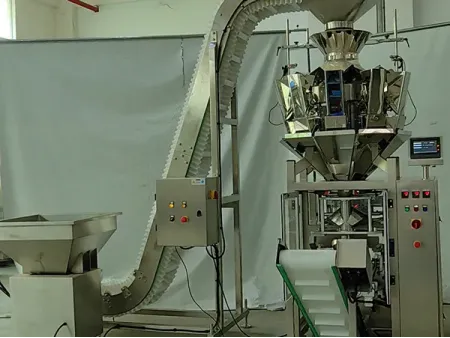

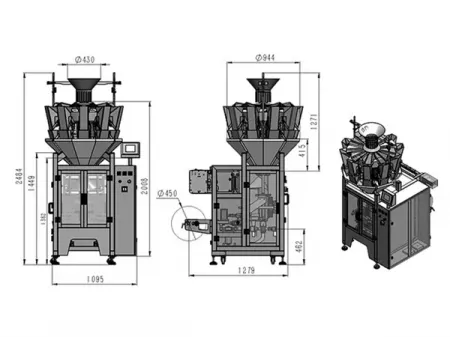

Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
Request a Quote
The vertical form fill seal machine with multihead weigher enables fully-automated weighing, product discharge, bag forming, sealing, punching, and date printing.
Applications
- Suitable for dry granular food products and similar materials, including snack foods, puffed foods, seeds, dried fruits, coffee beans, tea, confectionery, baked goods, rice, nuts, chili, pasta, pet food, and other comparable solid granular products.
- Applicable to non-food products, including metal components such as nuts, screws, washers, and other solid items.
Options
- Servo-driven horizontal sealing unit
- Hole-punching module for pouch openings
- Box-pouch forming module
- Easy-tear notch device
- Air-release valve or sponge-based exhaust module
- Date printer
- Nitrogen flushing system
- Discharge conveyor
- Pouch edge-cutting function
- Automatic replenishment elevator
Bag Type
Specifications
| Model | PMW-420E |
| Touch Screen | 7-inch color touch screen |
| Weighing Heads | 10 heads |
| Weighing Hopper Volume | 1600 ml |
| Weighing Range | 10-800g |
| Weighing Accuracy | 0.5-1.5g |
| Max. Film Width | 420mm |
| Bag Width Range | 80～200mm |
| Bag Length Range | 80-180mm (For bag lengths over 180 mm, double film pull is required.) |
| Film Pulling System | Servo motor |
| Horizontal Sealing Drive | Pneumatic cylinder |
| Max. Speed | 60 bags/min |
| Power Supply | 4.5kW, 220V 50/60Hz |
How effective is the stand-up pouch solution for high-value dried fruit brands?
How effective is the stand-up pouch solution for high-value dried fruit brands?
The stand-up pouch format can deliver product presentation and enhance the visual appeal of dried fruit products, improving brand visibility and consumer attraction at the point of sale.
What advantages does a high-precision granule dosing system offer for rice producers?
What advantages does a high-precision granule dosing system offer for rice producers?
Granule dosing system ensures metering, reduces weight deviations during the packaging process and improves fill accuracy, product consistency, and packaging quality.
