  • Combination of main packaging machine and multihead weigher
  • Combination of main packaging machine and automatic weigher
  • Combination of main packaging machine and volumetric weigher

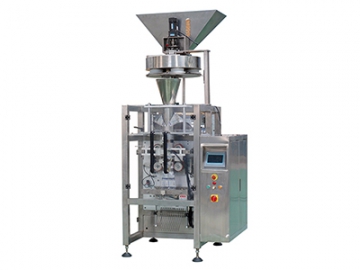

The multihead weighing vertical form fill seal machine is an integrated automatic packaging system consisting of the main packaging machine, multihead weigher, conveyor and feeder, and is used to produce packaged bags with a width lower than 100mm, and a film that is heat sealed. This machine carries out bag forming, counting, material feeding, inflation (discharging), and sealing. It is suitable for automatic packaging of granules, powders and thick liquid. It is ideal to meet customer packaging requirements for a variety of materials.

Details of Multihead Weighing Vertical Form Fill Seal Machine

Applicable material
The multihead weighing vertical form fill seal machine is used for packaging of candy, chips, jelly, biscuit, chocolate, popcorn, puffed food, flour, corn starch, capsule, shampoo, shower gel, tomato sauce, chemical fertilizer and more.

Package material
This multihead weighing vertical form fill seal machine uses a variety of composite membrane types, including PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE etc.

The following type of packaging machines are produced by Siyuan:
Type SYW-420 SYW-520 SYW-620
Packaging bag size 80-200mm (width)80-300mm (length) 100-250mm (width)100-350mm (length) 100-250mm (width)100-350mm (length)
Packaging speed 25-85bag/min 25-70bag/min 25-70bag/min
Counting range 100-1000g 500-2000g 1000-5000g
Power supply 220v 50-60Hz 3kw 220v 50-60Hz 3.5kw 220v 50-60Hz 4kw
Compressed air consumption 6-8kg/m3 0.15m3/min 6-8kg/m3 0.15m3/min 6-8kg/m3 0.15m3/min
Net weight 500kg 600kg 800kg
Outline dimension (L*W*H) 1350*1100*1700mm 1350*1200*1700mm 1650*1250*2000mm
Features
  • The multihead weighing vertical form fill seal machine is equipped with a protective cover on the main packaging machine to protect operators and maintain the cleanliness of materials to be packed.
  • The fill seal machine uses a PLC controlled servo motor. The entire machine operation is controlled using a large touch screen device, thus improving the accuracy of the entire machine.
  • For the following conditions, the machine will alarm to ensure machine safety during operations: no material, motor failure for film tension, low horizontal sealing temperature, safety gate failure.
  • The packaging machine is used to produce a variety of package bags, including pillow packs, 3 side seal pouches, 4 side seal pouches, hang hole bags and more.
