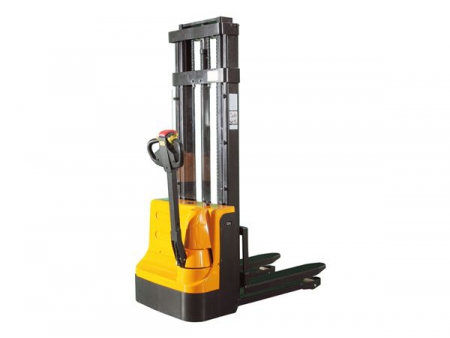

Walkie Stacker (Light Duty), KX-CDD-B

Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Walkie Stacker (Light Duty), KX-CDD-B
Request a Quote
Model
  • KX-CDD-B-10
  • KX-CDD-B-16
Lifting Capacity
  • 1000KG
  • 1600KG
Features
  • The electric stacker makes light-duty material handling easier and more efficient;

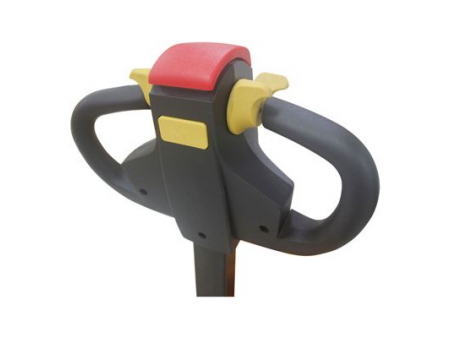

  • Control handle is designed with a compact structure, operator can work in stable and effective manner utilizing the control handle;

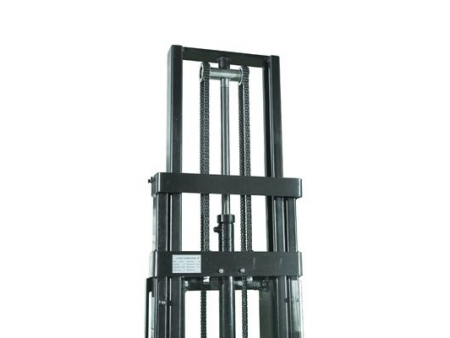

  • C-channel steel mast construction ensures robust structure and improved safety;

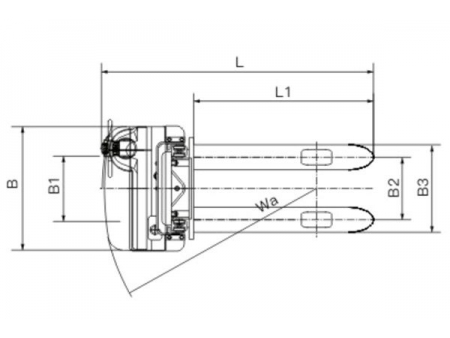

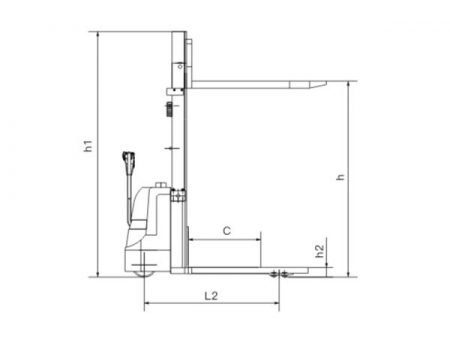

Technical Data
Model Units KX-CDD-B-10 KX-CDD-B-16
Rated capacity kg 1000 1600
Lifting height mm 1600/2000/2500/3000/3500
Lowered mast height mm 2060/1568/1818/2068/2318
Extended mast height mm 2060/2568/3060/3560/4068
Fork length mm 1150
Fork width mm 695
Overall length mm 1755
Overall width mm 800
Turning radius mm 1360
Loading wheel mm Φ80x70
Driving wheel mm Φ180x50
Distance between front wheel and rear wheel mm 1160
Travel speed (unladen/ laden) Km/h 4.5/4
Lifting speed (unladen/ laden) mm/s 150/100
Lowering speed (unladen/ laden mm/s 130/150
Lift motor kw 2.2
Drive motor kw 0.75
Battery voltage/capacity V/Ah 2x12/80
Drive control DC-speed controller
Net weight Kg 422/457/464/487/517 430/475/493/513/536
Details
