Electric Walkie Stacker

Request a Quote

View All: http://aerialwork-platform.com/4-4-electric-walkie-stacker.html

FSEM Material Handling Equipment

Fully powered pallet stacker with 1000kg capacity, up to 3000mm lifting height

Powered by an electric motor, this versatile walkie stacker is expertly designed for efficient loading, stacking, and transportation tasks in indoor environments. It is ideal for use in warehouses, logistics centers, factories, and supermarkets, offering a reliable solution for handling goods in confined spaces and areas with high packaging standards. By enhancing operational efficiency, this stacker reduces labor costs and simplifies operations, making it a practical choice for businesses focused on productivity and precision.

1000kg
3000mm

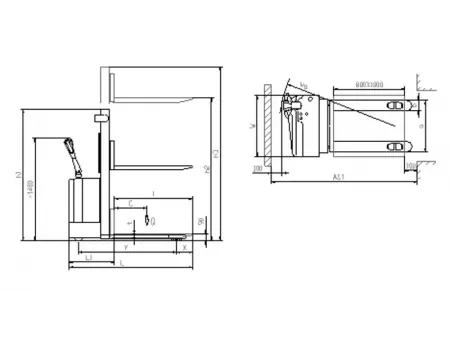

Specifications

Model Number		FSEM10-25	FSEM10-30
Rated Capacity (Q)	kg	1000
Load Center (C)	mm	400
Max. Fork Height (h2)	mm	2500	3000
Max. Machine Height (h3)	mm	2950	3450
Fork Length (l)	mm	1130
Overall Fork Width (a)	mm	680
Fork Size (b×t)	mm	160×55
Turning Radius (Wa)	mm	1500
Cargo Passage (Ast)	mm	2100
Travel Speed	km/h	2.5/3.0 (full load/no load)
Lifting Speed	mm/s	75/116 (full load/no load)
Lowering Speed	mm/s	70/56 (full load/no load)
Max. Gradeability	%	3/5 (full load/no load)
Wheel Base (Y)	mm	1215
Front-Wheel Distance (X)	mm	380
Drive Part Length (L1)	mm	615
Battery	V/Ah	2×12/80
Driving Motor	kW	0.65
Lifting Motor	kW	1.6
Overall Length (L)	mm	1745
Overall Width (W)	mm	820
Overall Height (H1)	mm	1750	2000
Overall Net Weight	kg	535	550
