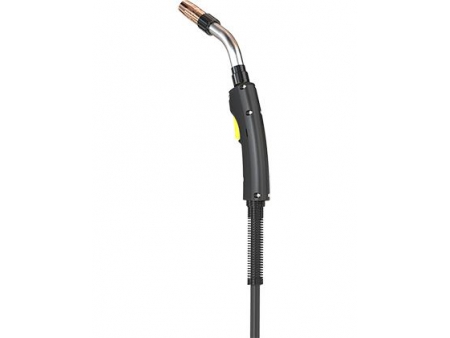

NQ200, MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 200A
Rating: Mixed Gas: 150A
Duty Cycle: 60%
Wire Size: 0.030"-0.045"(0.8-1.2)
Order Part No.
| EURO FITTING I TYPE GUN TUBE | 10FT/3M | NQ 200-10 |
| 12FT/3.6M | NQ 200-12 | |
| 15FT/4.5M | NQ 200-15 | |
| EURO FITTING Ⅱ TYPE GUN TUBE | 10FT/3M | NQ 200B-10 |
| 12FT/3.6M | NQ 200B-12 | |
| 15FT/4.5M | NQ 200B-15 |
Components
| No. | Part Number | Description |
| 1 | 4323 | Rubber Cap |
| 2 | Q512518S | O-ring 12.5X1.8 |
| 3 | QT2-60 | Swan Neck 45° |
| 4 | 4786 | Swan Neck 45° |
| 5 | 4780 | Insulating Nut |
| 6 | 1880155 | Handle |
| 7 | 5662 | Trigger |
| 8 | QS2101 | Front Cable Support Spring |
| 9 | QEL2010 | Cable Assembly 10ft/3m |
| QEL2012 | Cable Assembly 12ft/3.6m | |
| QE2015 | Cable Assembly 12ft/3.6m | |
| 10 | ES2201 | Back Cable Support Spring |
| 11 | EH2201 | Back Handle |
| 12 | Q210406B | Screw M4X6 |
| 13 | EP3001 | Gun Plug Nut |
| 14 | BEU2001 | Bernard Euro Gun Plug |
| 15 | Q504010 | O-ring 4x1 |
| 16 | Q505217 | O-ring 5.28X1.78 |
