Armoured Hose
This product has been discontinued and removed from our shelves.
Our armored hoses are reinforced with HB steel rings and are suitable for dredging operations that involve highly abrasive materials such as cape rock, coral, limestone and other damaging materials. The flexibility and strength of armored hoses are absolutely necessary for dredging projects in order to minimize downtime.
Lining
The lining of these armored dredging hoses are made from abrasive resistant synthetic rubber that is reinforced with high strength breaker plies.
Reinforcement
The body of the armored hoses is made from high tensile strength rubber that is resistant to fatigue and built in wear rings are made from >450 HB material.
Cover
The outer cover features synthetic rubber that is resistant to abrasion, weathering, sea water and oil. The cover of the rubber hose incorporates reinforcing breaker plies that are black with a bright orange spiral stripe or coated in tough bright orange polyurethane.
1. Ideal working temperature: -25℃ to 80℃
2. Safety factor: 3:1
Technical Parameters
Size | I. D. | W.P. | Length | |
8inch | 200mm | 10bar~35bar | 1m~11.8m | |
10inch | 250mm | 10bar~35bar | 1m~11.8m | |
12inch | 300mm | 10bar~35bar | 1m~11.8m | |
16inch | 400mm | 10bar~35bar | 1m~11.8m | |
20inch | 500mm | 10bar~35bar | 1m~11.8m | |
24inch | 600mm | 10bar~35bar | 1m~11.8m | |
26inch | 650mm | 10bar~35bar | 1m~11.8m | |
30inch | 750mm | 10bar~35bar | 1m~11.8m | |
32inch | 800mm | 10bar~35bar | 1m~11.8m | |
34inch | 850mm | 10bar~35bar | 1m~11.8m |
Note: ID900mm & 1200mm, custom parameters are available.
Certificates

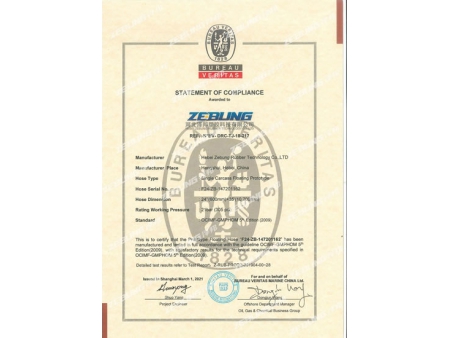

- BV Test Report (Single Carcass Floating Prototype-DN300mm)
- BV Test Report (Single Carcass Floating Prototype-DN600mm)

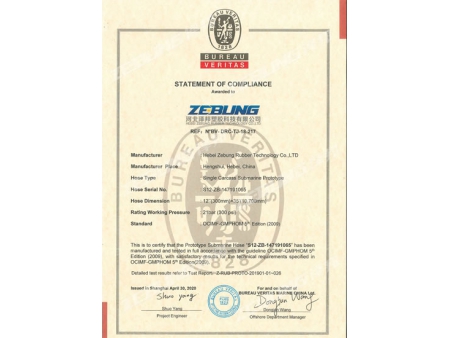

- BV Test Report (Single Carcass Submarine Prototype-DN300mm)
- BV Test Report (Single Carcass Submarine Prototype-DN600mm)

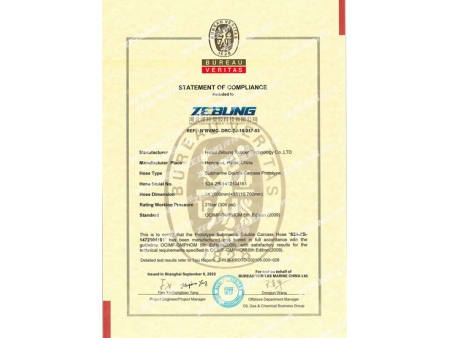

- BV Test Report (Submarine Double Carcass Prototype-DN600mm)
- BV Test Report (Floating Double Carcass Prototype-DN600mm)
