Top hammer drilling tools

This drilling rod is made with a large diameter and is especially suitable to be used with large hydraulic drilling jumbo. It features excellent holing performance and is applicable for underground mining and infrastructure construction.

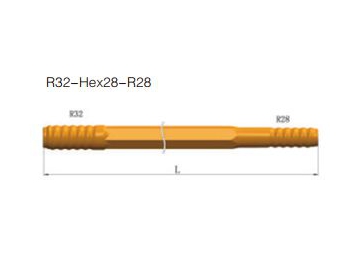

Drifter Rod	L		H		Product Code	Weight Kg
Drifter Rod	mm	Foot /Inch	mm	Inch	Product Code	Weight Kg

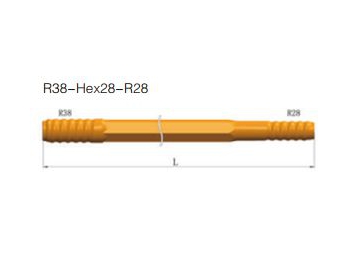

	2600	8’6 3/8"	28	1 1/8	276-2826-5453	13
	3090	10’1 5/8"	28	1 1/8	276-2830-5453	15.9
	3700	12'1 5/8"	28	1 1/8	276-2837-5453	18.5
	4005	13’1 43/64"	28	1 1/8	276-2840-5453	20.5
	4265	13’11 1/2"	28	1 1/8	276-2842-5453	21.3
	4305	14’1 31/64"	28	1 1/8	276-2843-5453	21.5
	3700	12’1 1/2"	28	1 1/8	276-2837-5653	18.5
	4305	14’1 31/64"	28	1 1/8	276-2843-5653	21.5
	3090	10’1 5/8"	32	1 1/4	276-3230-5453	19.6
	3090	10’1 21/32"	32	1 1/4	276-3230-5653	19.7
	3700	12’1 1/2"	32	1 1/4	276-3237-5653	23.6
	4305	14’1 31/64"	32	1 1/4	276-3243-5653	27.3

Drifter Rod	L		H		Product Code	Weight Kg
Drifter Rod	mm	Foot /Inch	mm	Inch	Product Code	Weight Kg

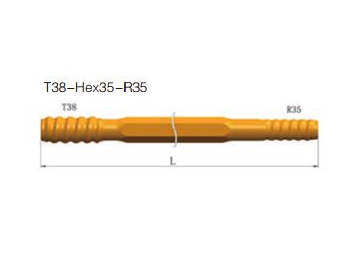

	3090	10’1 21/32"	35	1 5/8	276-3530-5654	24
	3700	12’1 1/2"	35	1 5/8	276-3537-5654	28.7
	4305	14’1 3/64"	35	1 5/8	276-3543-5654	33.7
	4915	16’1 1/2"	35	1 5/8	276-3549-5654	38.2
	5525	18’1 33/64”	35	1 5/8	276-3555-5654	43.1
	3700	12’1 1/2"	35	1 5/8	296-3537-7654	29.4
	4305	14’1 3/64"	35	1 5/8	296-3543-7654	34.4
	4915	16’1 1/2"	35	1 5/8	296-3549-7654	38.9
	5525	18’1 33/64”	35	1 5/8	296-3555-7654	43.8
	3090	10’1 21/32"	35	1 5/8	276-3530-7654	23.9
	3700	12’1 1/2"	35	1 5/8	276-3537-7654	28.6
	4305	14’1 3/64"	35	1 5/8	276-3543-7654	33.6
	4915	16’1 1/2"	35	1 5/8	276-3549-7654	38.3
	5525	18’1 33/64"	35	1 5/8	276-3555-7654	43.2
	6135	20’1 1/2"	35	1 5/8	276-3561-7654	47.9

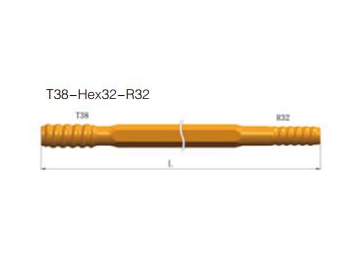

	3700	12’1 1/2"	32	1 1/4	276-3237-5654	23.6
	4305	14’1 31/64"	32	1 1/4	276-3243-5654	27.5
	4915	16’1 1/2"	32	1 1/4	276-3249-5654	31.4
	3700	12’1 1/2"	32	1 1/4	276-3237-7654	23.6
	4305	14’1 31/64"	32	1 1/4	276-3243-7654	27.5

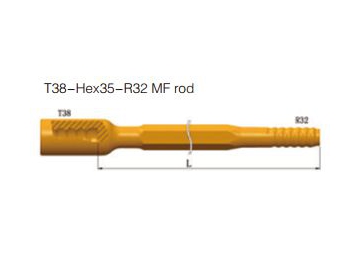

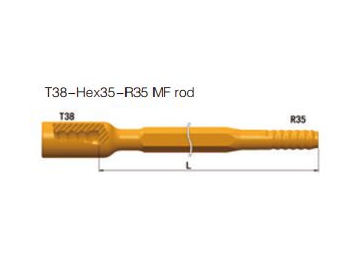

Drifter Rod	L		H		Product Code	Weight Kg
Drifter Rod	mm	Foot /Inch	mm	Inch	Product Code	Weight Kg
	4305	14’1 31/64”	35	1 3/8	276-3543-7655	33.8
	4915	16’1 1/2"	35	1 3/8	276-3549-7655	38.4
	5525	18’1 33/64"	35	1 3/8	276-3555-7655	43.3
	6135	20’1 1/2"	35	1 3/8	276-3561-7655	48
	4305	14’1 31/64"	35	1 3/8	296-3543-7655	34
	4915	16’1 1/2"	35	1 3/8	296-3549-7655	38.6
	5525	18’1 33/64"	35	1 3/8	296-3555-7655	43.5
	6135	20’1 1/2"	35	1 3/8	296-3561-7655	48.2

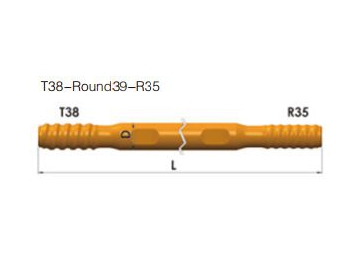

	4305	14’1 31/64"	39	1 1/2	270-3943-7655	34.2
	4915	16’1 1/2"	39	1 1/2	270-3949-7655	39.2
	5525	18’1 33/64"	39	1 1/2	270-3955-7655	44.3
	6135	20’1 1/2"	39	1 1/2	270-3961-7655	49.3
