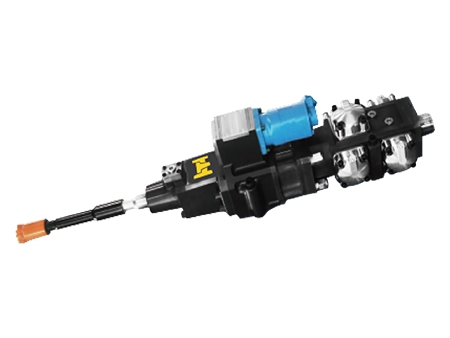

Hydraulic Drifter, RC600

Request a Quote

View All: http://htdrillingmachine.com/4-1-hydraulic-drifter.html

Purpose-built for medium-hard rock formations, the RC600 hydraulic drifter delivers powerful and precise drilling across a wide range of demanding applications. Its robust design and versatile capabilities make it the perfect choice for support drilling in underground mining, anchor bolt installation, highway construction, bridge engineering, and complex building projects. Experience the reliability and power of this hydraulic drifter in your next drilling project. Reach out to our team today and discover how it can transform your operations with efficiency and durability.

Features

Compact and Durable Design Built for heavy-duty performance and long-lasting durability.
Stainless Steel Flushing Head Equipped with a corrosion-resistant stainless steel flushing head that includes a backflow prevention mechanism, protecting the gear chamber from wastewater contamination.
Modular Architecture Features a modular structure for easy maintenance and reliable operation.
Eco-Friendly Lubrication System The tail shank lubrication air is fully recyclable, preventing environmental contamination and promoting worker safety.

Applications

Mining support and reinforcement

Tunnel construction and drilling

Highway and bridge construction

General construction projects

Technical Specifications

Performance Parameters	Drilling Diameter	28 – 45 mm
	Impact Power	6.5 kW
	Impact Frequency	85 Hz
	Flow Rate	60 L/min
	Operating Pressure	120 - 180 bar
	Shank Type	R20, R22（Female Shank）
	Shank Type	R25, R28(Male Shank)
	Weight	76 kg
Dimensions	Length (without shank)	495 mm
	Width	266 mm
	Height (Vertical Distance)	166 mm
	Height(Horizontal Distance)	133 mm
Rotation Parameters	Motor Model	OMS 80
	Rotation Pressure	210 bar(max)
	Torque	360 N.m
	Rotation Speed	0 - 550 rpm
	Flow Rate	60 L/min
Flushing Flow and Pressure	Water Pressure	20 bar(max)
Flushing Flow and Pressure	Water Consumption	30 - 50 L/min
Shank Lubrication	Air Pressure	2.5 bar
	Air Consumption	200 L/min
	Lubricant Type	Turbine oil 100
	Oil Consumption	10 - 15 drops/min
Accumulator	Medium	Nitrogen（N₂）
	High Pressure	50 bar
	Low Pressure	4 bar
