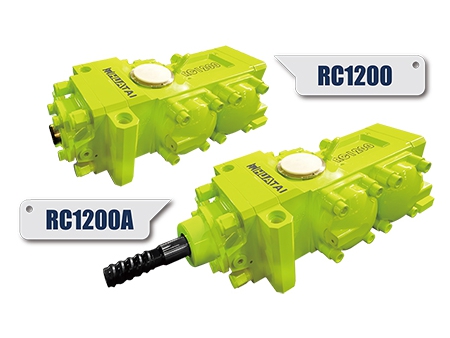

Hydraulic Drifter, RC1200/RC1200A
Request a Quote
Engineered for high-frequency precision, the RC1200/RC1200A hydraulic drifter is the ideal solution for bolt drilling rigs, small tunneling jumbos, and shaft drilling projects. Designed with insights from leading domestic and global technologies, this drifter brings exceptional speed and efficiency to anchor bolt drilling and blast hole creation.
The compact and robust structure of this hydraulic drifter ensures reliable performance even in tight underground spaces, making it the preferred choice for projects that demand both power and precision. Elevate your drilling efficiency with these hydraulic drifters. Contact us today to equip your projects with power, precision, and reliability.
- High Impact Power Delivers a powerful 14kW impact, enabling rapid rock penetration.
- Durability and Cost Efficiency Engineered for long-lasting use with low maintenance costs.
- Minimized Downtime Ample stock availability reduces maintenance waiting times, keeping projects on schedule.
- Bolt drilling for mine support
- Tunnel excavation
- Shaft drilling
- Construction and reinforcement projects
| RC1200 | RC1200A | |||
| Performance Parameters | Drilling Diameter | 33 - 70 mm | 43 -70 mm | |
| Impact Power | 14 kW | 14 kW | ||
| Impact Frequence | 100 Hz | 95Hz | ||
| Flow Rate | 100 L/min | 100 L/Min | ||
| Operating Pressure | 120 - 180 bar | 120 – 180 bar | ||
| Shank Type | R20, R22（Female Shank） | R25 R28（Male Shank） | ||
| Weight | 126 kg | 130 kg | ||
| Dimensions | Length (without shank) | 564 mm | 673 mm | |
| Width | 325 mm | 325 mm | ||
| Height (Vertical Distance) | 90 mm | 90 mm | ||
| Height(Horizontal Distance) | 173 mm | 173 mm | ||
| Rotation Parameters | Motor Model | OMS 100 | OMS125 | OMS160 |
| Rotation Pressure | 210 bar(max) | 210 bar(max) | ||
| Torque | 390 N.m | 490 N.m | 610 N.m | |
| Rotation Speed | 0 - 430 rpm | 0 - 330 rpm | 0 - 270 rpm | |
| Flow Rate | 60 L/min | 60 L/min | 60 L/min | |
| Flushing Flow and Pressure | Water Pressure | 20 bar(max) | 20 bar(max) | |
| Water Consumption | 40 - 80 L/min | 40 – 80 L/min | ||
| Shank Lubrication | Air Pressure | 2.5 bar | 2.5 bar | |
| Air Consumption | 260 L/min | 260 L/min | ||
| Lubricant Type | Turbine oil 100 | Turbine oil 100 | ||
| Oil Consumption | 10 - 15 drops/min | 10 - 15 drops/min | ||
| Accumulator | Medium | Nitrogen（N₂） | Nitrogen（N₂） | |
| High Pressure | 40 bar | 40 bar | ||
| Low Pressure | 4 bar | 4 bar | ||
