Top hammer drilling tools

Shank rods are made with a small diameter. So it can be used in conjunction with both small equipment and large hydraulic drilling jumbo. In addition, the shank rods can be used with threaded drill bits.

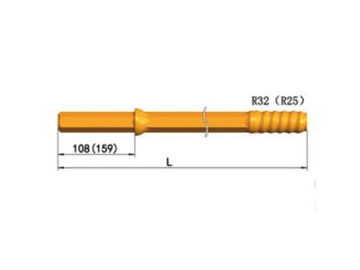

25mm(1”) Shank Rods	L		H		Thread
25mm(1”) Shank Rods	mm	Foot/inch	mm	inch	Thread
	300 400 700 900 1900 2200 3500 3600 3900 4500 4700 5500	11 7/8’’ 1’ 3 3/4’’ 2’ 3 5/8’’ 2’ 11 3/8’’ 6’ 2 7/8’’ 7’ 2 5/8’’ 11’ 5 3/4’’ 11’ 9 3/4’’ 12’ 9 1/2’’ 14’ 9 1/8’’ 15’ 5 1/8’’ 18’ 1/2’’	25 25 25 25 25 25 25 25 25 25 25 25	1 1 1 1 1 1 1 1 1 1 1 1	R25 R25 R25 R25 R32 R32 R32 R32 R32 R32 R32 R32

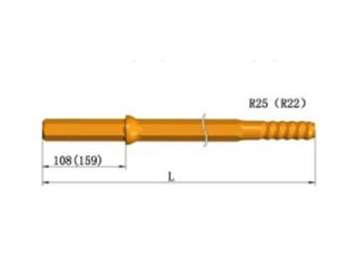

22mm(7/8") Shank Rod	L		H		Thread	Product Code	Weight Kg
22mm(7/8") Shank Rod	mm	Foot /Inch	mm	Inch	Thread	Product Code	Weight Kg
	420	1’4 1/2"	22	7/8	R25	266-2204-2852	1.3
	500	1’7 5/8"	22	7/8	R25	266-2205-2852	1.5
	800	2’7 1/2"	22	7/8	R25	266-2208-2852	2.5
	1000	3’3 3/8"	22	7/8	R25	266-2210-2852	3.1
	1200	3’11 1/4"	22	7/8	R25	266-2212-2852	3.7
	2000	6’6 3/4"	22	7/8	R22	266-2220-2851	6.2
