Hydraulic valves for hydraulic applications requiring load holding

Proportional solenoid-driven hydraulic screw-in cartridge valves serve as precise pressure-limiting devices in hydraulic systems, ensuring stable and efficient pressure regulation in demanding applications.

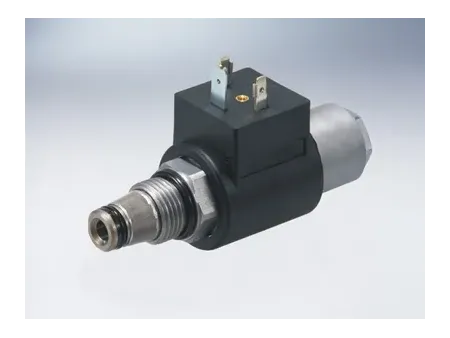

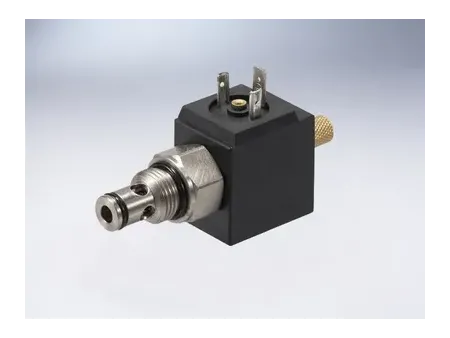

2-Way Seat Valve (Normally Closed Type, SP08-20)
  • Operating Pressure: 250bar (3625psi)
  • Flow: 22 L/min (5.8 gpm) at a pressure drop of 34.5 bar (500 PSID)

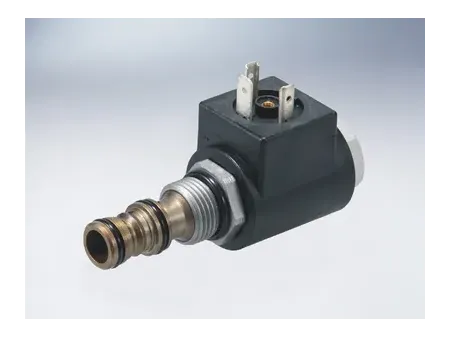

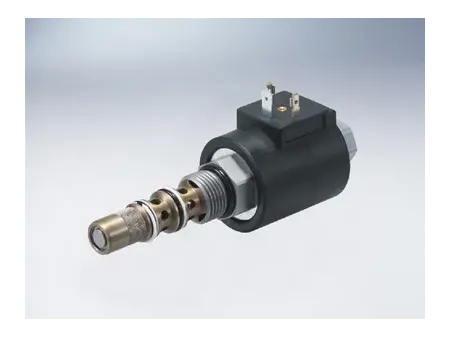

2-Way Seat Valve (Normally Open Type, SP08-21)
  • Operating Pressure: 207bar (3000psi)
  • Flow: 0 to 22.7 L/min (0 to 6 gpm)

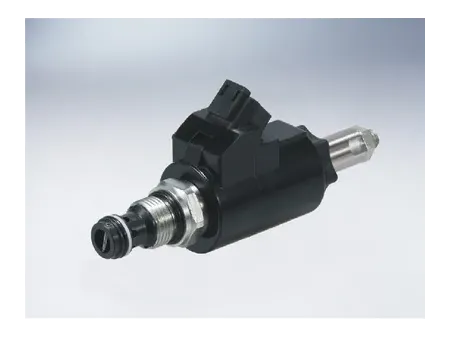

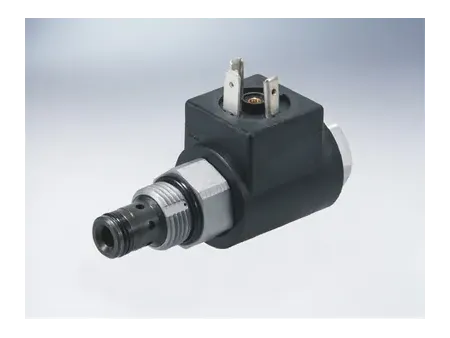

2-Way Seat Valve (Normally Closed Type, SP10-20)
  • Operating Pressure: 250bar (3625psi)
  • Flow: 68 L/min (18 gpm) at a pressure drop of 34.5 bar (500 PSID)

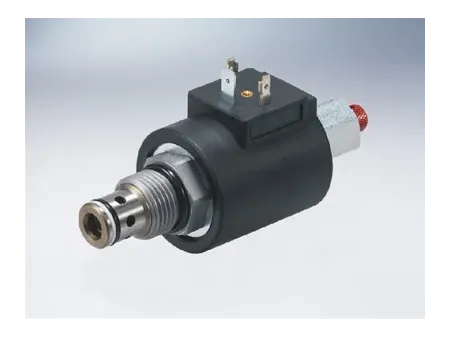

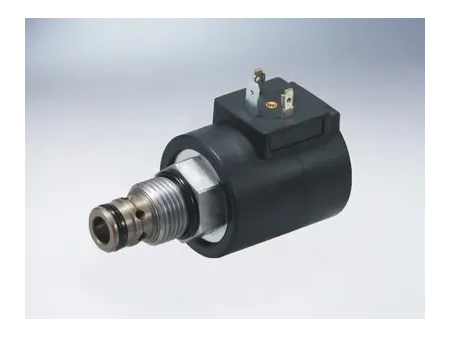

Proportional Relief Valve (TS08-27)
  • Operating Pressure: 241bar (3500psi)
  • Flow: 0.76 L/min (0.2 gpm) — max. pilot flow

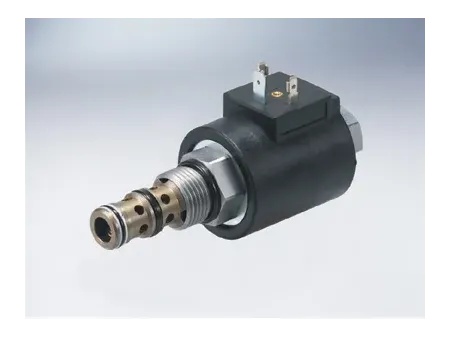

Proportional Relief Valve (TS10-26)
  • Operating Pressure: 241bar (3500psi)
  • Flow: 94.6 L/min (25 GPM), DP = 13 bar (190 PSI), cartridge valve only, flow from port ① to port ② with coil de-energized
Proportional Pilot-Operated Relief Valve (TS10-27)
  • Operating Pressure: 241bar (3500psi)
  • Flow: 75.7 L/min (20 gpm), DP = 14.8 bar (215 PSI), cartridge valve only, flow from port ① to port ② with coil de-energized
Proportional Pilot-Operated Pressure-Reducing and Relief Valve (TS10-36)
  • Operating Pressure: 241bar (3500psi)
  • Flow: With coil de-energized, rated flow from port ① to port ③ is 56.8 L/min (15 gpm) at a cartridge valve pressure drop of 22.8 bar (330 PSI)
Proportional Relief Valve (TS38-20)
  • Operating Pressure: 241bar (3500psi)
  • Flow:
    A: 11.4 L/min (3 gpm) at a pressure drop of 20 bar (290 PSI)
    B: 11.4 L/min (3 gpm) at a pressure drop of 10 bar (150 PSI)
    C: 11.4 L/min (3 gpm) at a pressure drop of 5.5 bar (80 PSI)
Proportional Pressure-Reducing and Relief Valve (TS98-31)
  • Operating Pressure: 207bar (3000psi)
  • Flow: With coil de-energized, flow from port ③ to port ④ is 11.4 L/min (3 gpm) at a pressure drop of 45 PSID
Proportional Pressure-Reducing and Relief Valve (EHPR08-33)
  • Operating Pressure: 207bar (3000psi)
  • Flow: 4.0 L/min (1.05 gpm), DP = 6 bar (87 PSI), cartridge valve only, flow from port ① to port ③ with coil de-energized
Inverse Proportional Pressure-Reducing Valve (DBVSA-1LG)
  • Operating Pressure:
    Port 1: 250 bar
    Port 2: 300 bar
  • Flow: 65L/min

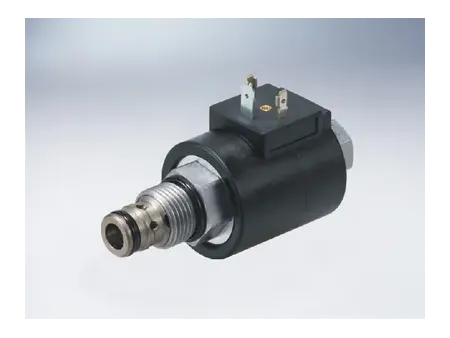

Solenoid Valves
  • Max. Operating Pressure: 207 bar
  • Temperature: -40℃ to 120℃ (standard nitrile rubber seal)
  • Coil Duty Rating: 85% to 115% of nominal voltage

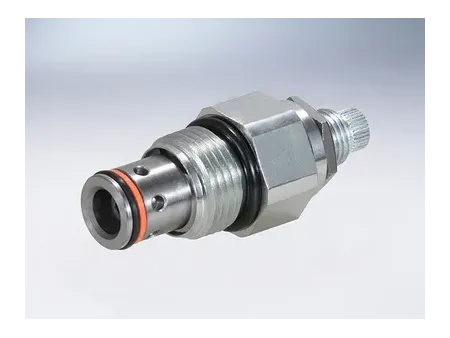

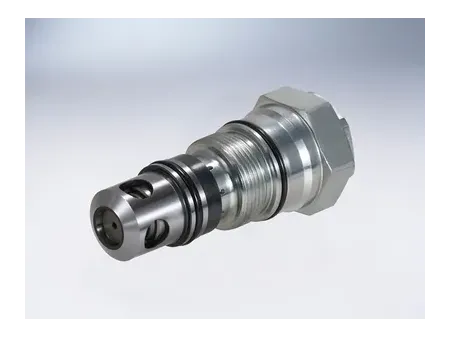

Pressure Valves
  • Max. Operating Pressure: 240 bar
  • Temperature: -40℃ to 120℃ (standard nitrile rubber seal)

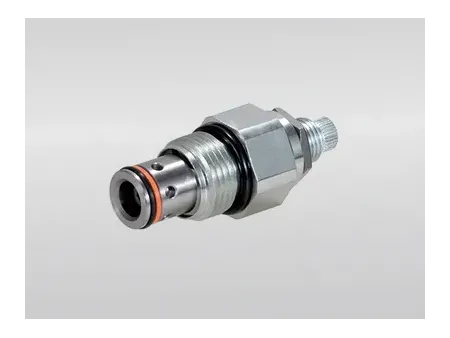

Pressure Valves
  • Temperature: -30℃ to 120℃ (standard nitrile rubber seal)

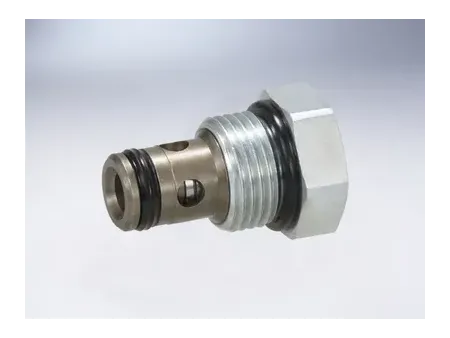

Flow Valves
  • Max. Operating Pressure: 250 bar
  • Temperature: -30℃ to 120℃ (standard nitrile rubber seal)

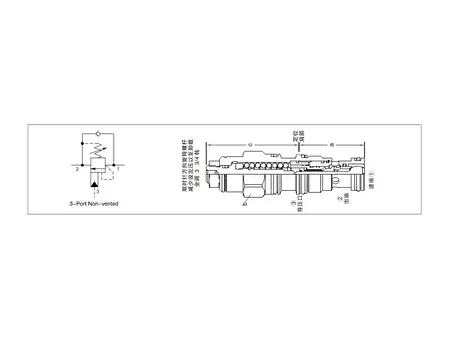

Balance Valves

Non-vented standard type, max. setting pressure 280 bar; pilot ratios: 3:1, 1.5:1, 2:1

Flow (L/min) Model Cavity Cartridge Valve Size (mm) Installation Torque (Nm)
a b c
L C
60 CBCA-LHN T-11A 35.0 22.2 49.8 58.2 45-50
120 CBEA-LHN T-2A 35.1 28.6 60.5 63.5 60-70
240 CBGA-LHN T-17A 46.0 31.8 69.9 84.1 200-215
480 CBIA-LHN T-19A 63.5 41.3 89.9 103.9 465-500

Looking for additional hydraulic valves? Contact us to explore our full range of hydraulic solutions tailored to your system’s needs.
