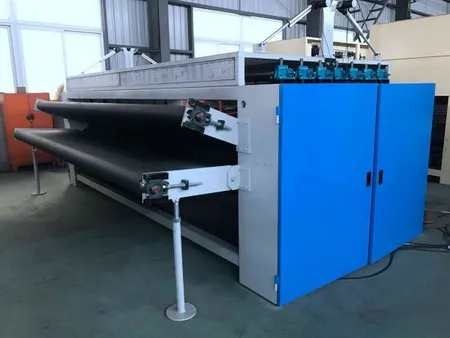

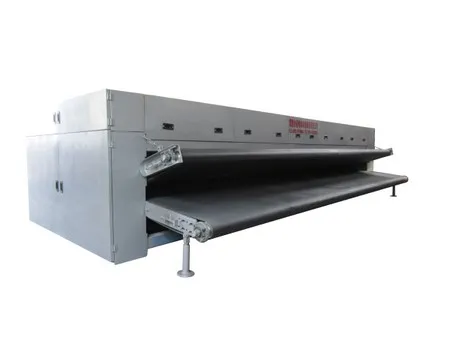

Drafting machine in nonwoven line for adjusting product properties, appearance and weight

Web drafter is used to adjust the longitudinal distribution and orientation of the fiber web to improve the ratio of longitudinal and lateral strength to be similar, and it can also adjust the thickness and density of the fiber web to enhance production yield in conjunction with a nonwoven production line.

Number of roller 5 roller 9 roller 15 roller 21 roller
Working width 2000mm~7000mm
Linear speed ≤40m/min
Drafting Ratio 1:1~1:3
Application

Web drafter is suitable for various nonwoven manufacturing processes, such as needle punching, thermal bonding, and spunlace.

Features
  • Web drafter adopts independent servo control or inverter control, which is customizable according to demand.

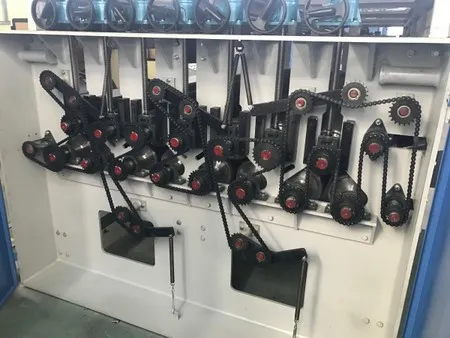

  • Each drafting roller group is independently driven, allowing for individual adjustment of drafting ratios.
  • Anti-static belts with embossed textures and guiding devices are equipped.
