PTFE Cable Liner, CYG-AMT
Request a Quote

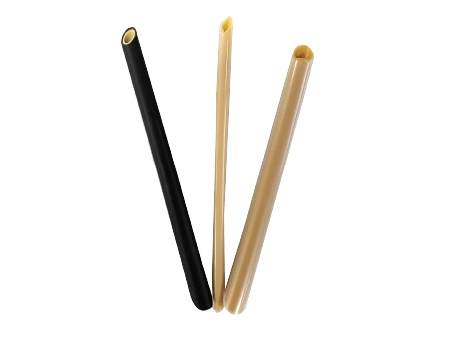

Teflon Protective Sleeve for Automotive Shift Cables
Wear-Resistant Fluoroplastic Tubing
- PTFE or modified PTFE material
- Typical operating temperature range: -50°C to 200°C
- Low friction coefficient and high abrasion resistance for extended lifespan
- Superior mechanical and chemical resistance
- Long extrusion length and high volume
Applications
- Our wear-resistant fluoroplastic tubing is a high-performance sleeve crafted from top-quality PTFE dispersion resin through extrusion. It boasts a low friction coefficient (approximately 0.02) and high abrasion resistance, making it the ideal choice for a wide range of operating cable assemblies in cars, SUVs, trucks, forklifts, mining vehicles, and yachts.
Features
- Typical operating temperature range: -50°C to 200°C
- Low friction coefficient and high abrasion resistance for extended lifespan
- Superior mechanical and chemical resistance
- Long extrusion length and high volume
- Extended single-piece lengths (e.g., continuous extrusion up to 1500m for Ø3.7×4.5)
- Traceable tubing with proprietary equipment
Properties | Test Method | Performance | ||
CYG-AMT(G) | CYG-AMT(M01) | CYG-AMT(M02) | ||
Base material | - | PTFE | PTFE | PTFE |
Filler | - | None | Abrasion resistant filler | High temperature abrasion resistant resin |
Color | - | Natural | Brown | Yellow |
Specific gravity | ASTMD792 | 2.13g/cm³ ~2.20g/cm³ | 2.0g/cm³ ~2.16g/cm³ | 2.0g/cm³ ~2.16g/cm³ |
Melting point | ASTMD3418 | 327℃±10℃ | PTFE: 327℃±10℃ Filler: 280℃±10℃ | PTFE: 327℃±10℃ Filler degrade>450℃ |
Continuous operating temperature | - | 200℃ | 200℃ | 200℃ |
Tensile strength | ASTMD638 | ≥20.7MPa | ≥27.6MPa | ≥25.0MPa |
Ultimate elongation | ASTMD638 | ≥200% | ≥150% | ≥150% |
Wear resistance (self-developed test device) | Load: 80N R=400mm | - | ≥500000 cycles No crack, no breakdown | ≥1000000 cycles No crack, no breakdown |
Chemical resistance | - | Excellent | Excellent | Excellent |
Flammability | UL224 | Pass | Pass | Pass |
Engineering Plastic Composite Tubing
- Inner layer: PTFE or modified PTFE material
- Outer layer: PA, PBT, PP, and other engineering plastics
- Low friction coefficient and high abrasion resistance for extended lifespan
- Competitive pricing, low noise, and lightweight
- Extended single-piece lengths (e.g., continuous extrusion up to 1500m for Ø3.7×4.5)
Applications
- Our engineering plastic composite tubing is a dual-layered tubing with a PTFE liner.
- The inner layer utilizes PTFE material, while the outer layer is composed of engineering plastics (customizable based on customer requirements). It offers significant cost advantages while meeting the need for low friction and high abrasion resistance in various operating cable assemblies for cars, SUVs, trucks, forklifts, mining vehicles, and yachts.
Features
- Low friction coefficient and high abrasion resistance for extended lifespan
- Competitive pricing, low noise, and lightweight
- Extended single-piece lengths (e.g., continuous extrusion up to 1500m for Ø3.7×4.5)
- Traceable tubing with proprietary equipment
- Wide material options and customizable specifications
