Metal Liner Panels

Request a Quote

Website: http://bltbuilding.com/5-6-liner-panels.html

YX24-200-1000

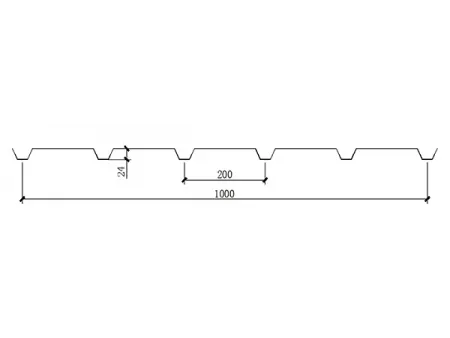

24mm depth×1000mm width internal liner panel for inner refurbishment of buildings

Effective cover width: 1000mm
Overall width of sheet: 1200mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

Metal liner panels are designed with a flat surface and shallow grooves set at regular intervals, giving walls and ceilings a clean, uniform look. With a rib depth of 24 mm and a cover width of 1000 mm, they are suitable for interior linings, partitions, and ceilings. The panels integrate well with roof and wall systems, helping projects maintain a consistent appearance while keeping installation straightforward and cost-effective.

Applications

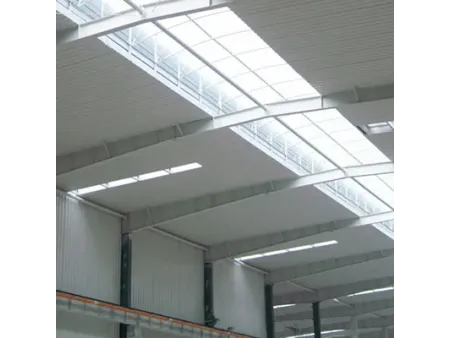

Metal liner panels are suitable for industrial workshops, commercial spaces, offices, hotels, malls, and exhibition centers. They can also be used for ceilings and partitions to create durable, uniform surfaces.

Specifications

Model	YX24-200-1000
Effective cover width	1000mm
Overall width of sheet	1200mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Exposed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The panels are designed with evenly spaced shallow grooves, giving interiors a clean, uniform, and attractive finish.
Their structure makes them suitable for use as wall linings, ceilings, and partition boards, combining practicality with aesthetics.
Lightweight yet durable materials make handling and installation easier, while also keeping overall costs efficient.
