EC Centrifugal Fan
Request a Quote
The EC centrifugal fans are designed especially for supply & exhaust ventilation and air conditioning systems, where space-saving and quiet running are of increasing importance. Due to the adoption of electronically commutated (EC) external rotor motor, these centrifugal fans are featured by minimal acoustic noise and reduced overall size since the external rotor is directly attached to the fan impeller.

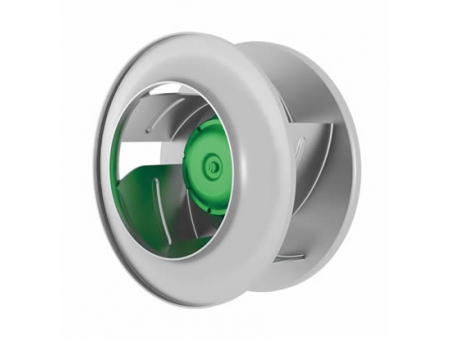

- EC Centrifugal Fan (Backward Curved, Aluminum-magnesium Alloy)
- Usage: air conditioning, supply and exhaust ventilation systems
- Impeller diameter: 315-630mm
- Air flow: 2100-12500m³/h
- Pressure: up to 800Pa
- Drive method: direct drive
- Installation: suitable for both vertical and horizontal mounting
- EC Motor Centrifugal Fan (Backward Curved, Plastic Impeller)
- Usage: air conditioning, supply and exhaust ventilation systems
- Impeller diameter: 190-280mm
- Air flow: 600-1600m³/h
- Pressure: up to 550Pa
- Drive method: direct drive
- Installation: suitable for both vertical and horizontal mounting
- EC Centrifugal Fan (Forward Curved Impeller), PP Series
- Usage: fan coil units, small ventilation ducting products
- Impeller diameter: 130-200mm
- Air flow: 100-2000m³/h
- Pressure: 0-120Pa
- Motor power: 60W-120W
- Communication: VSP/PWM/485
- Insulation class: B
- Operating temperature: -40℃-60℃
- EC Centrifugal Blower (Forward Curved Impeller), ZQ Series
- Usage: ceiling mounted air handlers, variable air volume (VAV) systems
- Impeller diameter: 7-15in
- Air flow: 300-13000m³/h
- Pressure: 0-800Pa
- Motor power: 250W-4000W
- Communication: VSP/PWM/485
- Insulation class: F
- Operating temperature: -25℃-45℃
- EC Centrifugal Fan, YUWA Series
- Usage: fresh air unit, air handling unit
- Impeller diameter: 400~630mm
- Air flow: 1000~24000m³/h
- Pressure: 0~2500Pa
- Motor power: 1100W~7500W
- Control mode: VSP/4-20mA/PWM/485
- Insulation grade: F
- Working temperature: -25℃~40℃

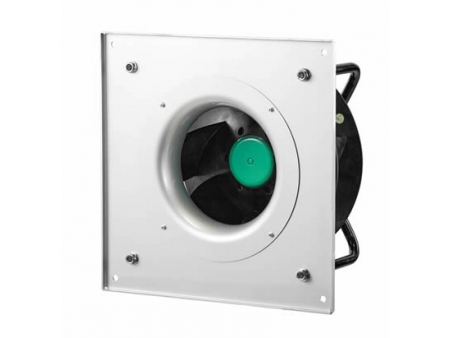

- EC Centrifugal Fan, YUWB Series
- Usage: fresh air unit, air handling unit
- Impeller diameter: 250~400mm
- Air flow: 600~8000m³/h
- Pressure: 0~2000Pa
- Motor power: 500W~3500W
- Control mode: VSP/4-20mA/PWM/485
- Insulation grade: F
- Working temperature: -25℃~40℃

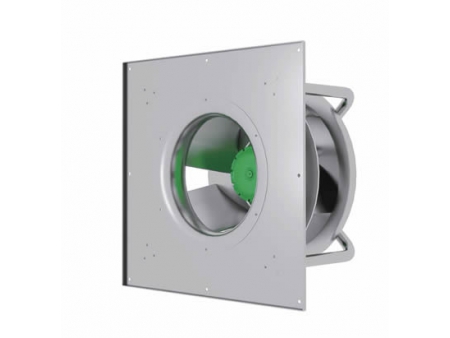

- EC Centrifugal Fan, YUWE Series
- Usage: fresh air unit, air handling unit
- Impeller diameter: 133~630mm
- Air flow: 300~22000m³/h
- Pressure: 0~1200Pa
- Motor power: 500W~4500W
- Control mode: VSP/4-20mA/PWM/485
- Insulation grade: F
- Working temperature: -25℃~40℃

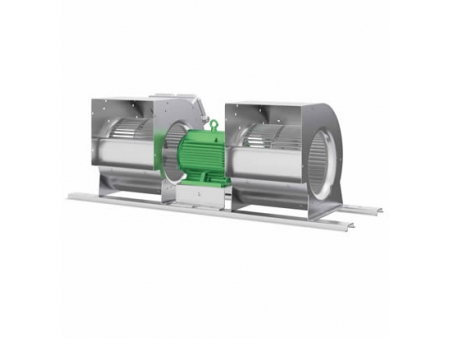

- EC/AC Centrifugal Fan (Forward Curved Impeller), ZQL2 Series
- Usage: ceiling-mounted air handling unit
- variable air volume air conditioning system
- Impeller diameter: 9~18in
- Air flow: 600~30000m³/h
- Pressure: 0~800Pa
- Motor power: 1500W~7500W
- Control mode: VSP/485
- Insulation grade: F
- Working temperature: -25℃~45℃

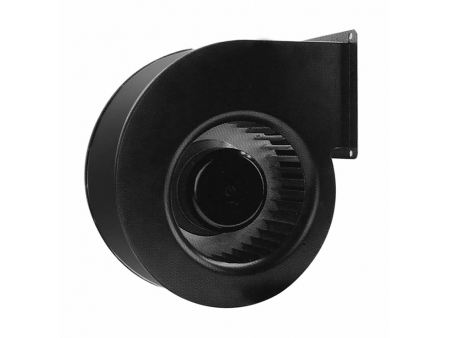

- EC Centrifugal Fan (Forward Curved Impeller), YEM Series
- Usage: fresh air unit, air purification system
- Impeller diameter: 120~280mm
- Air flow: 50~3000m³/h
- Pressure: 0~1000Pa
- Motor power: 10W~950W
- Control mode: VSP/485
- Insulation grade: B
- Working temperature: -25℃~60℃

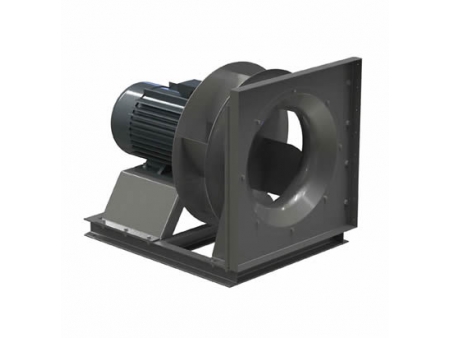

- EC Centrifugal Fan, YPF-E Series
- Usage: fresh air unit, air handling unit
- Impeller diameter: 500~900mm
- Air flow: 3000~93000m³/h
- Pressure: 0~3400Pa
- Motor power: 7.5kW~45kW
- Insulation grade: F
- Working temperature: -15℃~40℃
