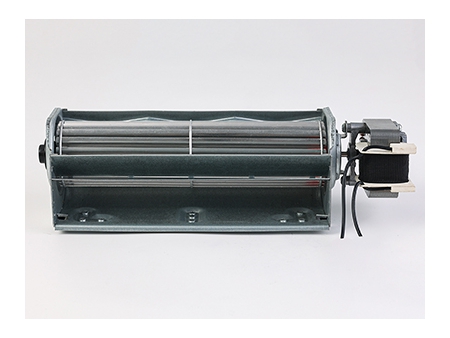

Crossflow Blower & Fan
Request a Quote
Our small cross flow fans feature simple structure and strong wind. They are manufactured using materials that comply with the RoHS directive.
Crossflow blower & fan with Class B insulation can operate at -20℃ - 40℃, thus can be used in air conditioners, air curtains, heaters and other home appliances.
We can also offer Class F or Class H cross flow fans to satisfy your special needs.
Certifications
Recommendations
| TYPE | VOLTAGE | FREQUENCY | INPUT POWER | SPEED | WHEEL DIA | A | B | C | D | E | F |
| V AC | Hz | W | R/MIN | MM | MM | MM | MM | MM | MM | MM | |
| YJ4810-GL30150 | 120 | 60 | 10 | 2400 | 30 | 148 | 158 | 168 | 50 | 47.5 | ---- |
| YJ4820-GL30250 | 230 | 50 | 18 | 1200 | 30 | 248 | 258 | 268 | 47.5 | 47.5 | ---- |
| YJ6113-GL60150 | 120 | 60 | 21 | 1420 | 60 | 156 | 162 | 223 | 95 | 83 | 13 |
| YJ6116-GL60180 | 230 | 50 | 12 | 950 | 60 | 181 | 193 | 258 | 95 | 83 | 13 |
| YJ6120-GL60180 | 230 | 50 | 31 | 2300 | 60 | 181 | 193 | 258 | 95 | 83 | 13 |
