Following Capping Machine
Request a Quote
The following capping machine consists of the cap unscrambler, cap guiding unit, cap clamping unit, capping system, motion module, conveyor, and control system. The full structure is also streamlined to allow for easy adjustment, making it suitable for automatic capping of 1-5L bottles. Capping is completed during conveyance, and unlike other machines, capping is continuous with no pause, thereby avoiding liquid splashing and preventing bottle pollution.
Features
- The following capping machine uses 304 stainless steel as its material.
- PLC controlled with touchscreen operation.
- The high filling speed allows for a highly productive product filling.
- The capping process is exceptionally stable and is completed simultaneously with bottle conveyance. There is no need to stop the bottles, thus preventing liquid splash and bottle pollution.
Application
This following capping machine is an ideal solution for filling with a high production rate. Applicable caps include a screw cap and gland cap.

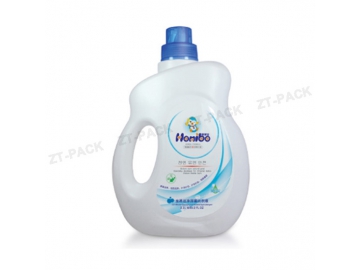

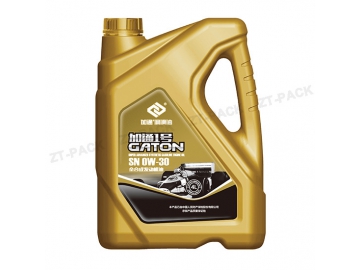

Applicable Bottle Types
Technical Parameters
| Capacity | ≤2500 bottles/hour |
| Percent of pass | ≥99% |
| Applicable Bottle Type | Round bottle: Φ50-140mm height: 230-340mm Flat bottle: length 45-250mm width 45-140mm height 90-340mm |
| Cap’s specification | Φ30-65mm H15-30mm |
| Air pressure | 0.6～0.8MPa |
| Power Source | ～380V 50Hz |
| Power | 2.5KW |
| Weight | 800Kg |
| External Dimension | 2195×1300×2300mm (L×W×H) |
