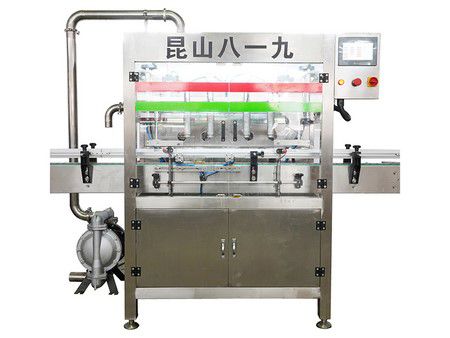

Vacuum Capping Machine
Our vacuum capping machine is engineered with a mechatronic design and incorporates a PLC-based fiber optic sensing system, allowing for adjustable vacuum pressure to suit specific requirements. Its superior performance guarantees product quality throughout the shelf life, making this capping machine a perfect fit for the food and pharmaceutical sectors. Additionally, it is designed to integrate seamlessly with filling lines for products like jams and canned goods, enhancing efficiency and reliability in production processes.
Glass jars or bottles with tinplate cap.
Container feeding-Vacuum application-Capping-Discharge

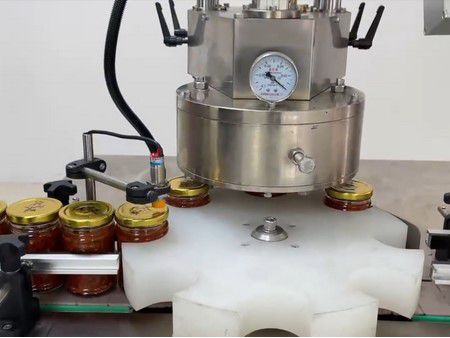

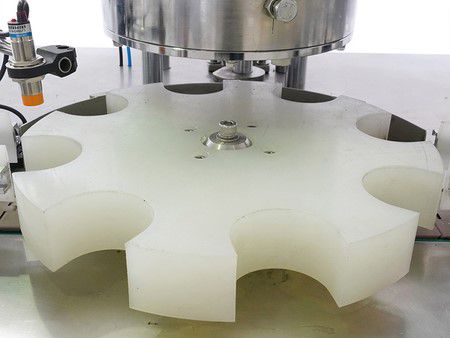

The vacuum capping machine features an advanced electronic sensor and a Programmable Logic Controller (PLC) integrated with a touch screen control system. The capping machine is equipped with a graduator positioning system that ensures precise placement of caps, and an pneumatic gripping system that optimizes the vacuum sealing process.
Constructed from high-quality stainless steel, the vacuum capping machine promises long-lasting performance and resistance to wear and tear, making it suitable for the demanding environments of the food and pharmaceutical industries. It also includes an oil-cooling vacuum pump that efficiently maintains the machine's performance even under continuous operation. The inclusion of a negative pressure tank enhances the machine's ability to achieve an optimal vacuum level for each container, ensuring the integrity of the seal and the preservation of the product.
Specifications| Cap size | 38-82mm |
| Applicable bottle diameter | 30-120mm |
| Capping speed | 25-35bpm |
| Air pressure (vacuum) | 0.4-0.8Mpa/0.01-0.06Mpa |
| Power supply | 220V, 50Hz, 3.0kW |
