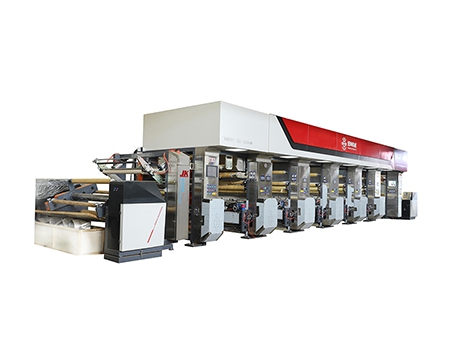

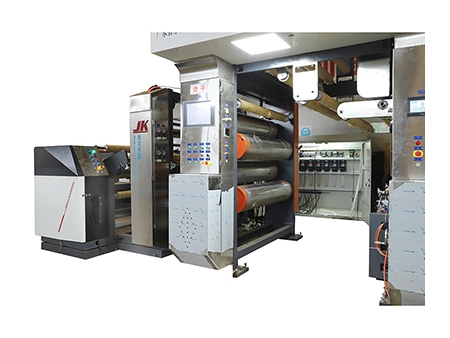

JK-1600 Gravure Press

Request a Quote

View All: http://gravure-printing.com/1-3-jk-4c1600.html

PVC film printing, PET Film Printing, Bopp Film Printing

Print width: 1500mm
Print speed: 5-150m/min
Color number: four
Print precision: ±0.2mm
Roller length: 1600m
Roller diameter: 150mm-380mm
Plate cylinder: shaftless

JK-1600 Gravure Press is specially designed for printing on flexible packaging films made of PVC, OPP, CPP, PET, Nylon, etc. The gravure printing machine features a maximum speed up to 150 m/min and tension range of 5-50 kg. The tension and speed vary depending on the different materials, which can be adjusted according to the different material properties to achieve excellent print quality.

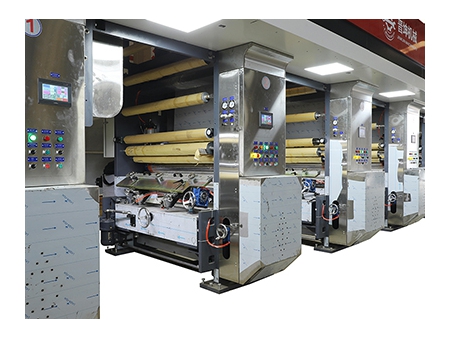

JK1600-5 Electronic Line Shaft Gravure Printing Machine

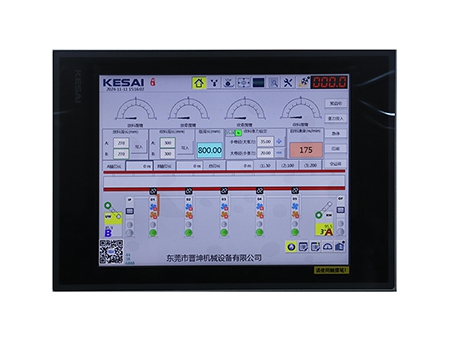

The advanced configuration of our gravure printing machines includes a motion control PLC system, servo control, a fully automatic color registration system and a still-image display for superior precision and efficiency.

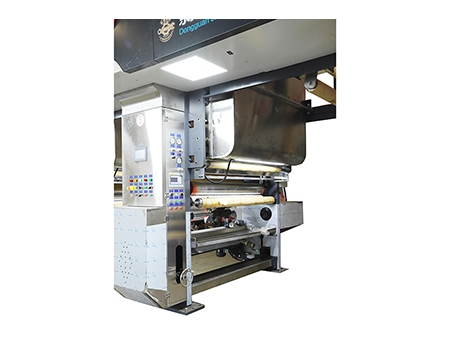

JK1600-3 Mechanical Line Shaft Gravure Printing Machine
Our gravure printing presses are also available with mid-range configurations, which are equipped with a PLC system, variable frequency control, fully automatic color registration system and a still-image display.
JK1600-4 Mechanical Line Shaft Gravure Printing Machine
Gravure printing machines with basic configurations come with a PLC system and variable frequency control.

Application examples

Printed Paper

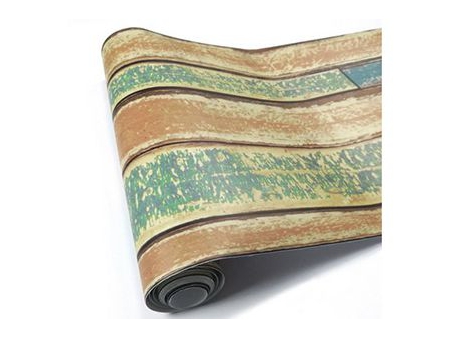

PVC Wallpaper

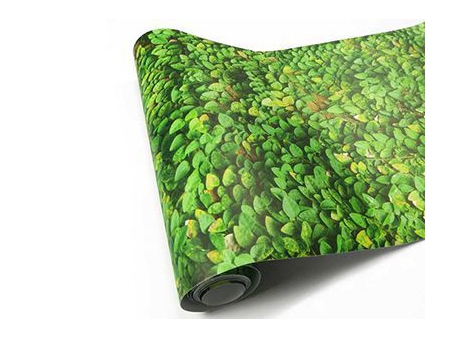

PVC Printed Wallpaper

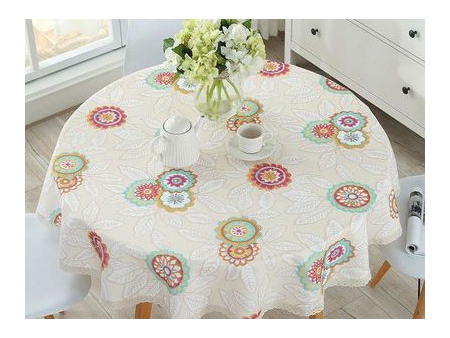

Table Cloth

Specifications

Tension range: 5-50kg
Tension precision: ±5kg
Maximum pressing force: 1500kg
Drying method: electrical heating (optional conduction oil heating)
Weight: 35T
Applicable ink: oily ink, water-based ink
Applicable printing materials: flexible packaging films, such as PVC, OPP, CPP, PET, Nylon, PE and paper

Main configuration

1 shaftless duplex unwinder group
1 preheating unit
4 printing cylinder and drying system
1 tension control system
1 rewinding unit.

Customization

Not only do we provide standard configuration gravure presses, but we also offer customization services to process materials with special widths and colors.
Printing width : 1-4.2m.
Print color: 1-12.
All electrical configurations can be adjusted according to your requirements.
