YD

Drum motor used in conveyor systems for handling and processing of bulk materials and units

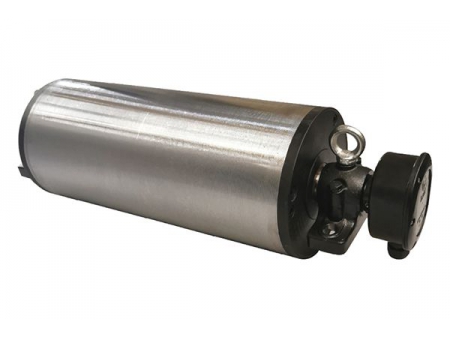

YD type oil-steeped motorized drum is a high-quality drum motor designed and produced by our company based on the proprietary technology of W.A.T. from Germany.

Applications

Automatic assembly lines or conveyor systems in industries such as electronics, food, postal services, light industry, airports, and ports, etc.

Features
  • The drum motor is oil immersed for direct cooling, providing high efficiency and a compact size.
  • Compared to similar products, this motorized pulley comes with lighter weight and lower noise.
Application Display

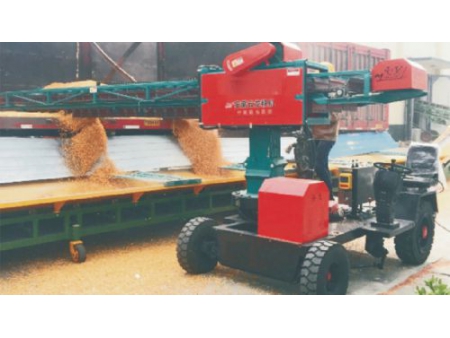

  • Bulk solid (grain) handling conveyor

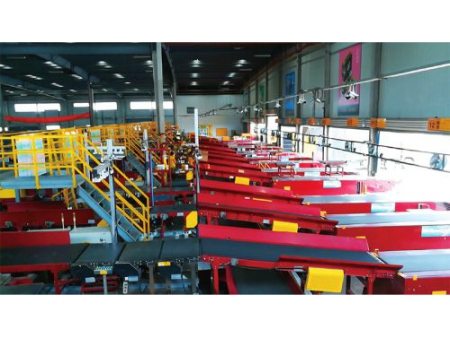

  • Express sorting

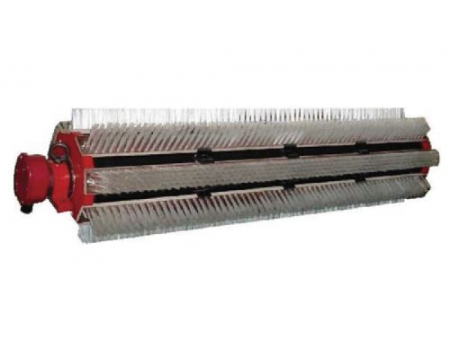

  • Brush cleaner

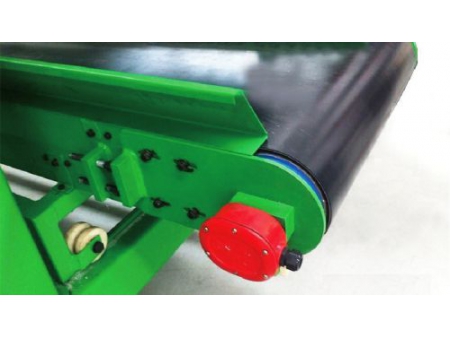

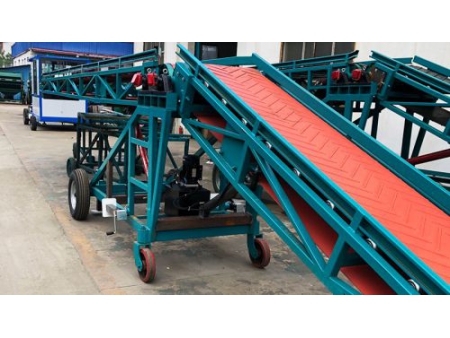

  • Belt conveyor
  • Food conveying
Technical Data
Drum Diameter
D mm
Power
P kW
Belt Speed
V m/s
L min 50mm Weight
kg
Drum Length mm Weight kg
Ø113 0.25 0.04, 0.05, 0.06, 0.07, 0.075, 0.08, 0.09, 0.1, 0.12, 0.15 350 16 1.1
0.2, 0.25, 0.32, 0.4, 0.45, 0.5, 0.63 380 16
0.37 0.4, 0.5, 0.63, 0.8, 0.9, 1.0, 1.25, 1.6, 2.0, 2.5 380 16
Ø138 0.75 0.25, 0.32, 0.4, 0.55, 0.63, 0.85, 1.6, 2.0, 2.5 420 25 1.5
Ø142 1.1 0.5, 0.63, 0.8, 1.0, 1.25, 1.7 420 25
Ø165 0.75 0.08, 0.1, 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5 400 40 2
Ø175 1.1/1.5/2.2 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 550/550/575 60
Ø216 Ø240 0.75 0.1, 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 390 63 2.5
1.1 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 410 67
1.5/2.2 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 460/460 69 2.8
3/3.7 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 510/600 81
Ø270 4/5.5/7.5 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 620/620/720 90 3.7
Ø320 4/5.5 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 560/560 155 5
7.5 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 660 160
