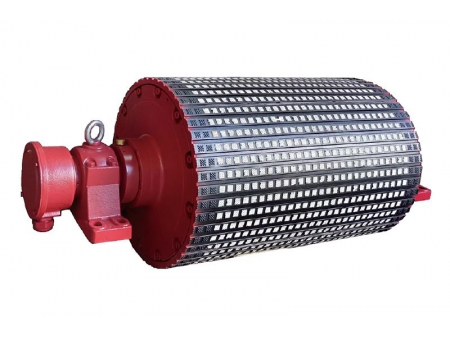

Oil-Steeped Motorized Drum (Ø240-400mm)
Request a Quote
DY-1
Drum motor used in belt conveyors for unit handling
DY-1 type oil-steeped motorized drum is an ideal driving device designed for various types of mobile belt conveyors.
Applications
Mobile belt conveyors for logistics sorting, warehouse logistics, food industry, household appliances, etc.

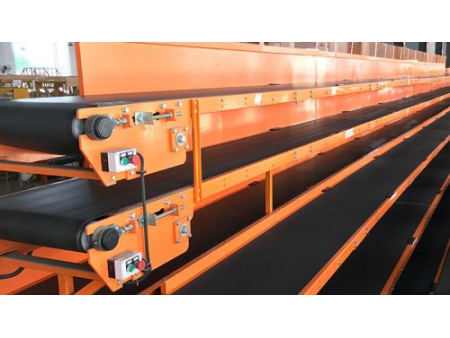

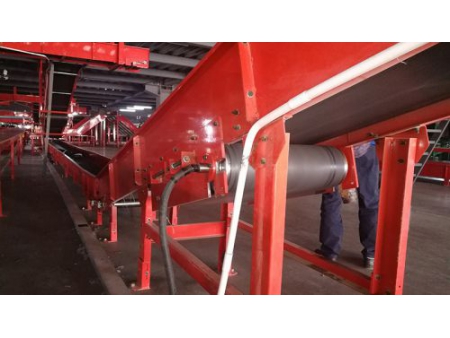

- Parcel belt conveyor
- Telescopic belt conveyor
Features
Compact structure, light weight, safe and reliable to use.
Technical Data
| Drum Diameter D mm | Power P kW | Belt Width B mm | Belt Speed V m/s | Weight M | |||||
| 0.63 | 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | kg | |||
| Ø240 | 1.1/1.5/2.2 | 400 | √ | √ | √ | √ | √ | √ | 70/74/75 |
| 500 | √ | √ | √ | √ | √ | √ | 76/80/81 | ||
| 650 | √ | √ | √ | √ | √ | √ | 86/90/91 | ||
| 3 | 500 | √ | √ | √ | √ | √ | √ | 81 | |
| 650 | √ | √ | √ | √ | √ | √ | 91 | ||
| Ø320 | 2.2/3/4/5.5 | 500 | √ | √ | √ | √ | √ | √ | 130/132/148/153 |
| 650 | √ | √ | √ | √ | √ | √ | 141/144/158/163 | ||
| Ø400 | 3/4/5.5 | 500 | √ | √ | √ | √ | √ | 152/166/171 | |
| 650 | √ | √ | √ | √ | √ | 170/183/188 | |||
| 7.5 | 650/800 | √ | √ | √ | 190/210 | ||||
