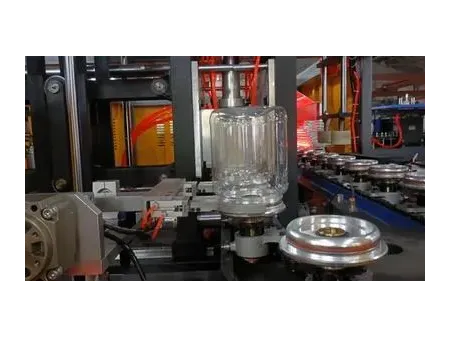

Bottle blowing machine for producing wide mouth plastic jars and containers

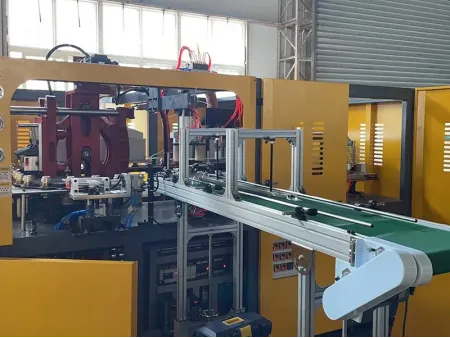

Our PET jar stretch blow moulding machine is an industrial device specifically designed for manufacturing wide-mouth containers. With our excellent processing and manufacturing capabilities, our machines can produce jars with neck diameters ranging from 60mm to 180mm and can be customized according to customers’ actual needs. These blow moulding machines are suitable for producing plastic containers such as food jars, cosmetic jars, pharmaceutical bottles, and chemical product jars with larger neck diameter.

Key Parameters
  • Blowing pressure: 3MPa
  • Max. container volume: 1800-5000ml
  • Installed power: 50kW
  • PET jar size: 60-180mm (customizable)

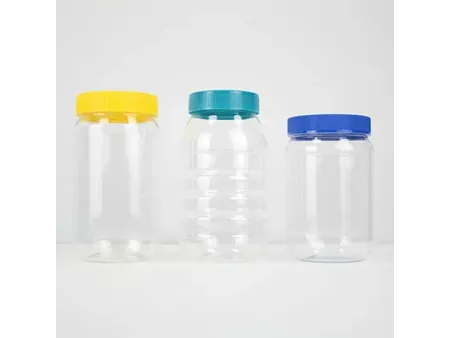

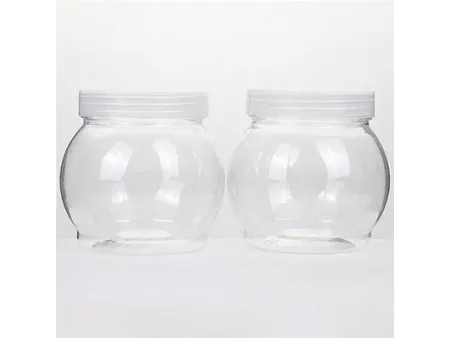

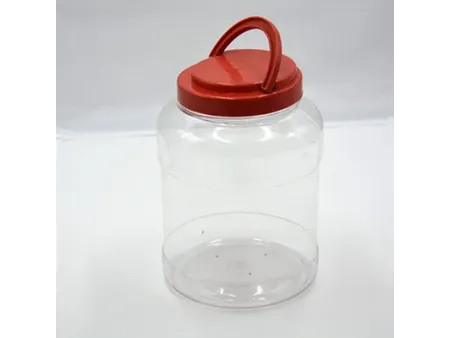

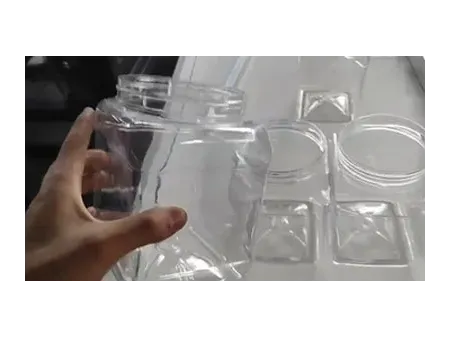

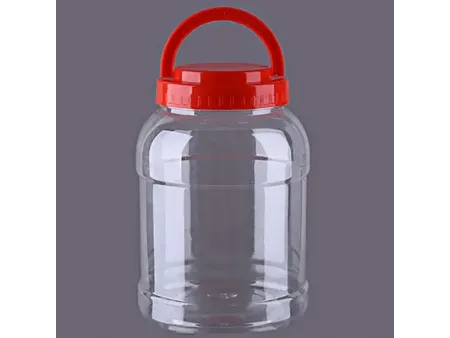

Samples of Plastic Bottles
Features

Our PET jar stretch blow moulding machine is specifically designed for producing wide-mouth jars, with moulds and blow moulding processes suited for larger neck diameters.

Our PET jar stretch blow moulding machine offers high production capacity, capable of producing a large number of wide-mouth jars per hour to meet large-scale production demands.

Equipped with advanced control systems and precise moulds, our machines ensure consistent size and shape of each jar.

Our ability to produce wide-mouth jars of different shapes and sizes helps us cater to diverse market needs.

Utilizing advanced heating and blow moulding technology, our machines effectively reduce energy consumption and production waste, adhering to environmental standards.

Key Components

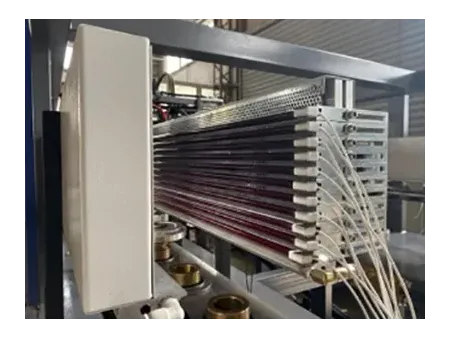

    1. Heating Lamp

      The blue light heating lamp offers higher energy efficiency, saving about 40% of energy, reducing production costs, and shortening the preform heating time. This improves the overall blow moudling process efficiency and increases output.

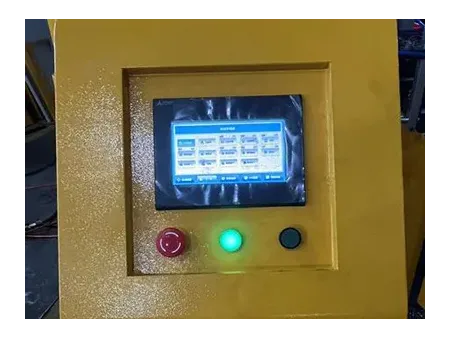

    1. Mitsubishi Touchscreen

      The touchscreen interface is user-friendly, allowing operators to easily monitor and control the system, reducing operational errors and training time. The Mitsubishi touchscreen is robustly designed to withstand harsh industrial environments, such as high temperatures, humidity, vibration, and dust, ensuring long-term stable operation.

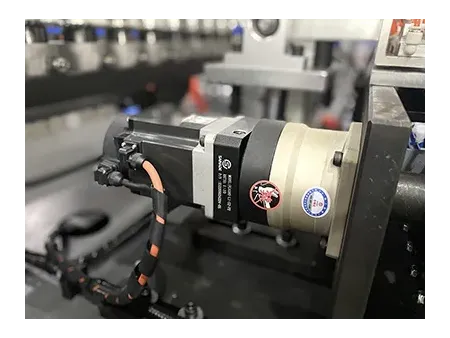

    1. Mitsubishi Servo Motor

      The servo motor features quick dynamic response, enabling rapid execution of control commands for efficient motion control. It also achieves high-precision position control, improving processing accuracy and efficiency by 30%, suitable for applications requiring precise positioning.

Specifications
Model Unit
Clamping System Number of cavities 1 2 2
Clamping force kg 36000 36000 36000
Mould stroke mm 200 120 120
Stretching stroke mm 360 360 360
Bottom stroke mm 50 50 50
Cavity pitch mm 190.5 114.3 152.4
Number of holder pc 32 48 52
Container Max. container volume ml 5000 1800 2000
Max. container height mm 320 320 320
Max. container diameter mm 170 130 130
Max. preform height mm 160 120 120
Max. neck diameter mm 130 110 110
Theoretical Output B/H 800 1400 1400
Electrical System Number of heating oven pc 4×4 4×4 4×4
Number of lamp pc 4×9 4×8 4×8
Heating power kW 48 48 48
Installed power kW 50 50 50
Voltage V 380V/50HZ 380V/50HZ 380V/50HZ
Air System Operating pressure MPa 0.7-0.9 0.7-0.9 0.7-0.9
Blowing pressure MPa 3 3 3
High pressure air consumption L/min 2.4/30 2.4/30 2.4/30
Power kW 30 30 30
Chiller System Temperature 10-15 10-15 10-15
Pressure MPa 0.4 0.4 0.4
Power HP 5 5 5
Machine Machine dimensions m 3.3×1.8×2.2 3.3×1.8×2.0 3.9×1.8×2.0
Machine weight kg 2500 3000 300
