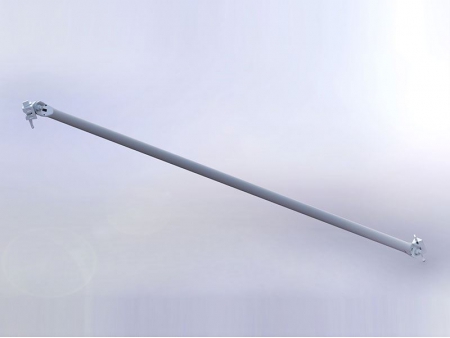

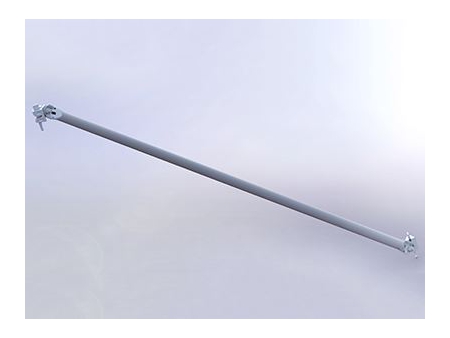

Ringlock Diagonal
Request a Quote
With a diverse range of scaffolding accessories available, we offer ringlock scaffolding solutions adapted to your construction and maintenance projects
Scaffold Ringlock System

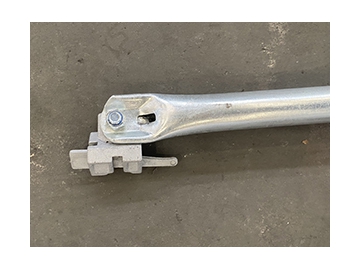

Insert the plugs on both ends of the diagonal brace into the corresponding taper holes located within the rosettes on the horizontal bar, and then hammer them in tightly.

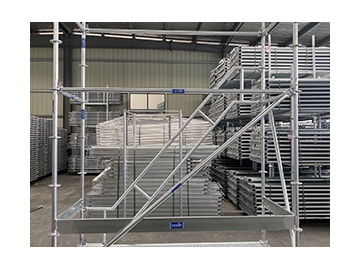

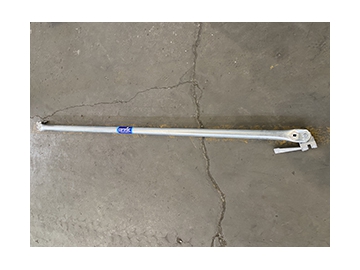

The diagonal bar can be easily connected to a ringlock standard, thus creating an entire ringlock system with a vertical and horizontal bar. The diagonal plays a reinforcement role, and can also be used as a guardrail. Like the other components, the ringlock diagonal is hot dip galvanized. Parameters
| Item No. | Ref. No. | Height | Weight | Packaging | |||
| Meters | Feet | kg | lbs | Qty. | Type | ||
| RL0979 | 0.60 | 2'-0" | 7.78 | 17.14 | 150 | Rack | |
| RL1044 | 0.65 | 2-2" | 7.81 | 17.20 | 150 | Rack | |
| RL1520 | 0.88 | 2-10" | 8 | 17.62 | 150 | Rack | |
| RL0221 | 0.914 | 3'-0 | 8.04 | 17.71 | 150 | Rack | |
| RL0038 | 1.065 | 3'-6” | 8.21 | 18.08 | 150 | Rack | |
| RL0682 | 1.15 | 3'-10" | 8.31 | 18.30 | 150 | Rack | |
| RL0060 | 1.22 | 4'-0" | 8.4 | 18.50 | 150 | Rack | |
| RL0072 | 1.524 | 5'-0” | 8.86 | 19.52 | 150 | Rack | |
| RL0571 | 1.572 | 5'-2" | 8.94 | 19.69 | 150 | Rack | |
| RL1033 | 1.625 | 5'-4" | 9.03 | 19.89 | 150 | Rack | |
| RL0103 | 1.829 | 6'-0" | 9.39 | 20.68 | 150 | Rack | |
| RL0156 | 2.13 | 7'-0 | 9.98 | 21.98 | 150 | Rack | |
| RL0160 | 2.44 | 8'-0" | 10.63 | 23.41 | 150 | Rack | |
| RL1501 | 2.572 | 8'-6" | 10.92 | 24.05 | 150 | Rack | |
| RL0626 | 2.743 | 9-10 | 11.3 | 24.89 | 150 | Rack | |
| RL0109 | 3.05 | 10-0" | 12.02 | 26.48 | 150 | Rack | |
