Ringlock Horizontal

Request a Quote

View All: http://scaffold-equipment.com/1-2-ringlock-horizontal.html

With a diverse range of scaffolding accessories available, we offer ringlock scaffolding solutions adapted to your construction and maintenance projects

Scaffold Ringlock System

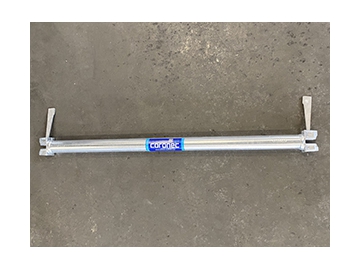

Ringlock horizontal also plays a supporting role in scaffolding support. The shorter horizontal bar is used as the horizontal support for a plank or guardrail.

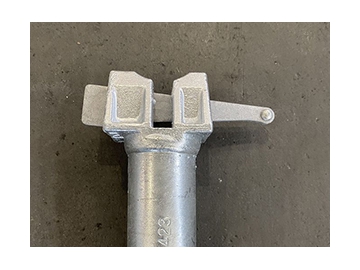

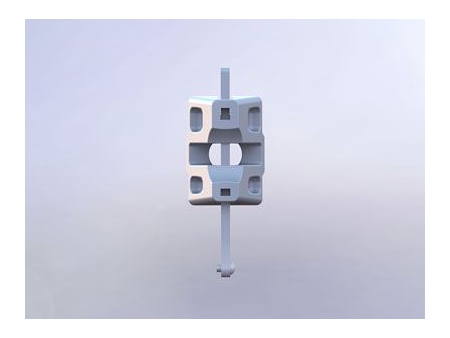

Insert the plugs at both ends of the horizontal bar into their corresponding taper holes within the standard rosettes, and then hammer them together tightly.

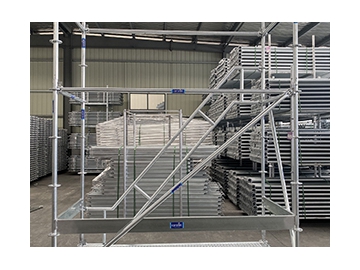

It is easy to connect the horizontal bar to the vertical bar, thus creating a full ringlock system with a vertical bar and diagonal brace. The horizontal bar is also hot dip galvanized.

Parameters

Item No.	Ref. No.	Height		Weight		Packaging
Item No.	Ref. No.	Meters	Feet	kg	lbs	Qty.	Type
RH10	RL0120	0.305	1'	1.86	4.10	600	Rack
RH20	RL0633	0.61	2'-0"	2.94	6.48	300	Rack
RH22	RL0681	0.65	2'-2"	3.08	6.78	300	Rack
RH25	RL1482	0.732	2-5"	3.37	7.42	300	Rack
RH210	RL1509	0.88	2-5/8"	3.90	8.59	300	Rack
RH30	RL0268	0.914	3'-0"	4.02	8.85	150	Rack
RH36	RL0621	1.065	3'-6"	4.56	10.04	150	Rack
RH37	RL1483	1.09	3'-7"	4.65	10.24	150	Rack
RH310	RL0680	1.15	3'-10"	4.86	10.70	150	Rack
RH40	RL1461	1.22	4	5.11	11.26	150	Rack
RH43	RL1484	1.286	4'-3	5.34	11.76	150	Rack
RH50	RL0620	1.524	5'-0"	6.19	13.63	150	Rack
RH52	RL0679	1.572	5'-2"	6.36	14.01	150	Rack
RH54	RL1384	1.625	5'-4	6.55	1,442	150	Rack
RH60	RL1479	1.829	6'-0	7.27	16.01	150	Rack
RH69	RL1503	2.072	6'-9"	8.13	17.91	150	Rack
RH70	RL1434	2.13	7'-0"	8.34	18.37	150	Rack
RH80	RL0349	2.44	8'-0	9.44	20.79	150	Rack
RH86	RL1485	2.572	8'-6”	9.91	21.83	150	Rack
RH90	RL1510	2.743	9'	10.52	23.17	150	Rack
RH100	RL0636	3.05	10'	11.61	25.57	150	Rack
