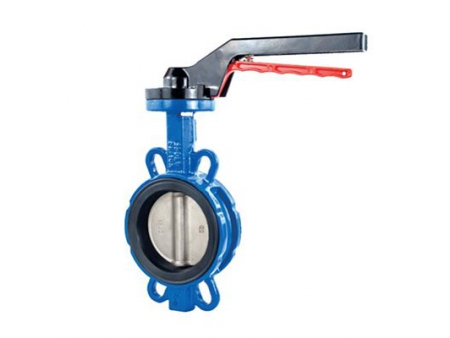

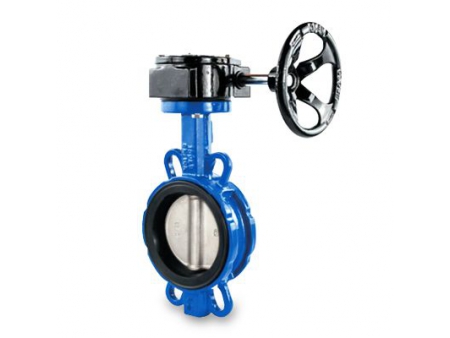

Soft Seated Butterfly Valve
Soft seated butterfly valve can reduce damage to the valve body's exterior and interior surfaces during the flow process, because the overcurrent section in the valve body adopts the soft rubber sleeve, and the valve seat can be replaced. The soft seated butterfly valve has excellent sealing performance, and its appearance has been upgraded to be more refined and good-looking.
Soft seated butterfly valve can achieve the control of flow switching and the adjustment of the flow rate. This flow control valve can be mainly used in the pipeline system of the waterworks, the high-temperature and high-pressure conveying system of the power plants, the wastewater treatment system of the paper mills, the drainage system of the chemical plants and other scenarios.

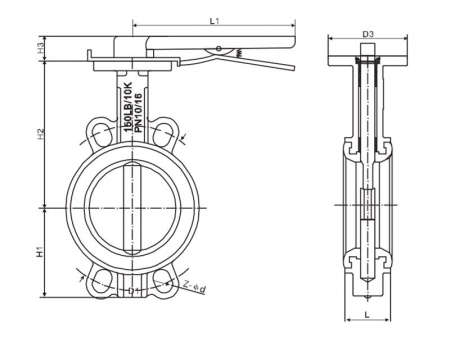

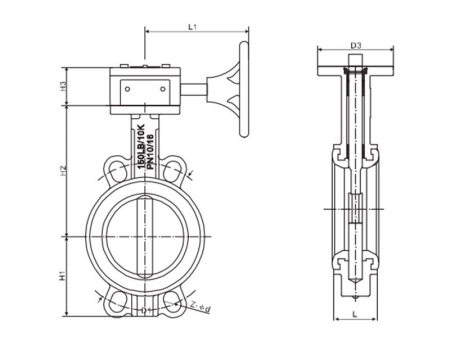

DN (mm) | L | L1 | D | PN1.0 | PN1.6 | 150Lb | 10K | D3 | H1 | H2 | H3 | ||||
D1 | Z- Ød | D1 | Z- Ød | D1 | Z- Ød | D1 | Z- Ød | Flange No. | |||||||
50 | 42 | 220 | 52.9 | 125 | 4-23 | 125 | 4-23 | 120.6 | 4-19 | 120 | 4-19 | F05 | 70 | 126 | 32 |
65 | 44.7 | 220 | 64.5 | 145 | 4-23 | 145 | 4-23 | 139.7 | 4-19 | 140 | 4-19 | F05 | 77 | 137 | 32 |
80 | 45.2 | 255 | 78.8 | 160 | 8-20 | 160 | 8-20 | 152.4 | 4-19 | 150 | 8-19 | F05 | 92 | 143 | 32 |
100 | 52.1 | 255 | 104 | 180 | 4-23 | 180 | 4-23 | 190.5 | 8-19 | 175 | 8-19 | F07 | 105 | 164 | 32 |
125 | 54.4 | 290 | 123.3 | 210 | 4-23 | 210 | 4-23 | 215.9 | 8-22 | 210 | 8-23 | F07 | 120 | 177 | 32 |
150 | 55.8 | 290 | 155.6 | 240 | 4-25 | 240 | 4-25 | 241.3 | 8-22 | 240 | 8-23 | F07 | 134 | 198 | 32 |
200 | 60.6 | 340 | 202.5 | 295 | 4-25 | 295 | 4-25 | 298.5 | 8-22 | 290 | 12-23 | F10 | 171 | 231 | 45 |
Note: If you need other sizes and materials of butterfly valves, please
