Troughed belt conveyor is perfect for transporting bulk materials due to its ability of retaining loose or bulk materials in the center of the conveyor, especially when the materials are abrasive. It is also suitable for long-distance conveying of materials that need to be transported across rough terrain, while preventing spillage.

As an expert of long-distance belt conveyors, Zoomry offers a variety of DTIIA/ TD75/ CEMA compliant universal troughed belt conveyors that are ready to integrate with various existing equipment such as crushers, screens, feeders, stackers and reclaimers in industrial plants, quarries, stock piles, loading points, etc.

  • Belt width 500mm-2600mm
  • Length According to customer needs
  • Inclination 0° to 30°
  • Capacity 0-15000m3/h
  • Lump size ≤300mm
  • Belt speed 0.6~4.5m/s
  • Drum diameter 400mm~1800mm
  • Roller diameter 89mm~219mm
Features

Troughed belt conveyor can be flexibly installed to accommodate the demanding transport needs, with adaptable transport length and various inclined angles of 0-30°.

Structure

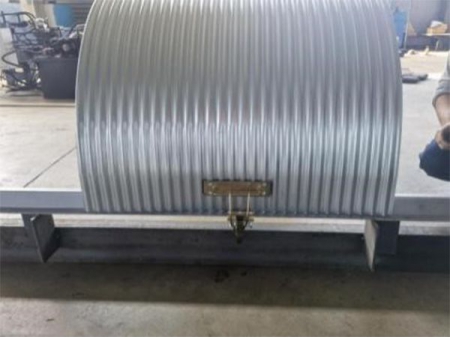

1 Tail pulley and frame 2 Guide trough 3 Rain cover 4 Stringer
5 Leg 6 Tensioning device 7 Belt 8 Conveyor roller
9 Head pulley and frame 10 Hopper 11 Drive unit

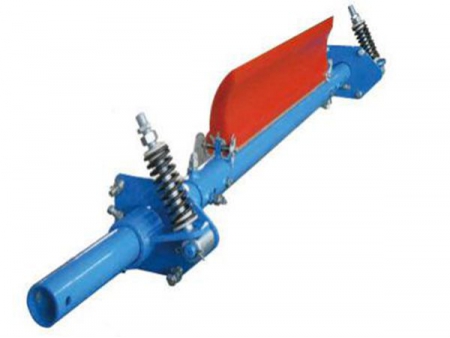

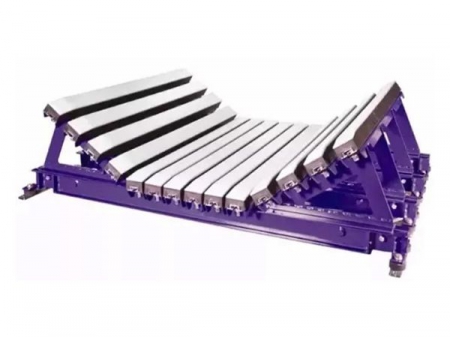

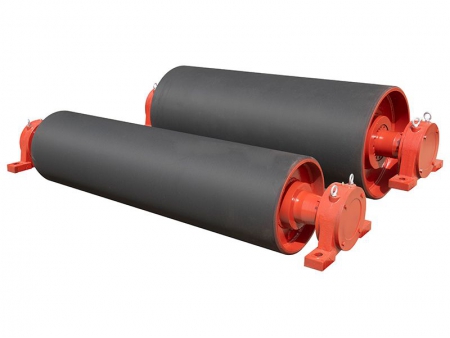

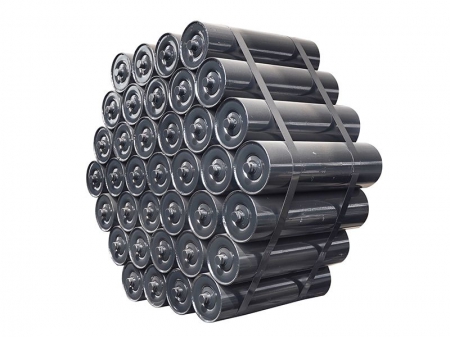

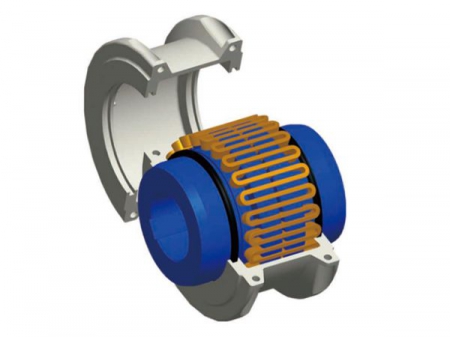

Conveyor components we offer
