Belt Conveyor
Characteristics of Belt Conveyor

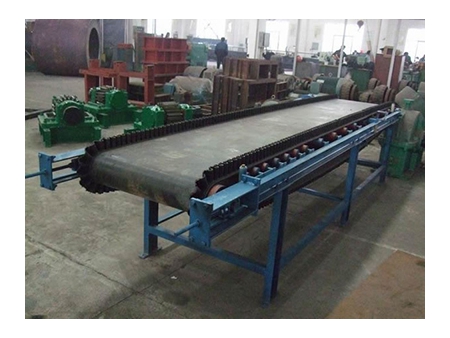

- Belt conveyor is composed of mainframe, conveyor belt, two or more pulleys, tension device, and drive device, etc. The pulleys may be powered or unpowered. The powered pulley can cause the belt to move forward so it is called driving pulley, while the unpowered pulley is called idler.
- The materials to be transferred are placed on the belt. Then, under the drive of motor, the driving pulleys drive the belt to move forward, conveying the materials to the designated location.
- Features of our belt conveying equipment include simple structure, reliable performance, large conveying efficiency, and long service life, etc.
Applications of Belt Conveyor
Belt conveyor machine is suitable for general material handling as well as bulk material handling.
It can be applied to convey grain, coal, ores, stones and minerals in food industry, mining industry, and metallurgy and some other fields.
Besides, our belt conveyor can also be used in combination with other fertilizer equipment for processing fertilizers efficiently.
| Specification | Capacity m3/h | Journey mm | Gauge mm | Dynamoelectric Roller V=0.8m/s |
| B500 | ≥ 5 | 500 | 1000 | 2.2 kw |
| B650 | ≥ 8 | 600 | 1200 | 3 kw |
| B800 | ≥ 12 | 600 | 1200 | 4 kw |
| B1000 | ≥ 16 | 700 | 1200 | 5.5 kw |
| B1200 | ≥ 20 | 700 | 1200 | 7.5 kw |
As a professional belt conveyor manufacturer in China, Right Machinery Company can provide many kinds of fertilizer units such as material handling conveyor, disc granulators, jaw crushers, rotary coolers, and ball mills, etc. Made of high quality raw materials, these fertilizer units are durable, efficient and reliable to use.
In addition to main fertilizer equipment, we also offer organic fertilizer equipment, inorganic fertilizer equipment, shearing machines, and impact crushers, etc. Due to their reliable quality and low price, they are widely used in India, Pakistan, Iran, Turkey, Jordan, Egypt and more.
We have passed ISO9001:2008, ISO9001:2000 certification and ABS Quality Evaluation, so you can feel secure in using our products.
Please contact us for more information.
