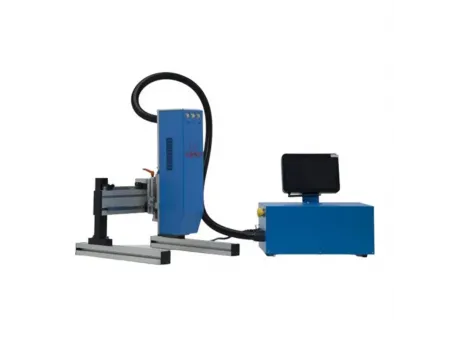

UV Piezo Inkjet Printer

Request a Quote

View All: http://upg-printpacking.com/4-2-uv-machine.html

The UV piezo inkjet printer is an innovative printing equipment that combines piezoelectric technology with UV-curable inks, delivering precise, high-resolution printing on a wide range of materials, including glass, plastic, metal, wood, and textiles.

This advanced printing machine enables high-quality, durable prints while supporting eco-friendly production methods. The ability to work with diverse materials and its adaptability for both creative and industrial applications make the UV piezo inkjet printer a valuable tool for businesses aiming to enhance their output while reducing environmental impact. Achieve precision, efficiency, and sustainability with this state-of-the-art printing solution.

Applications

Packaging: Printing on flexible or rigid packaging materials for vibrant branding.
Signage and Displays: Creating eye-catching signs, banners, and promotional materials.
Interior Decoration: Printing custom designs on furniture, tiles, or decorative panels.
Product Customization: Marking and branding on promotional items and industrial products.

Comparison of Printhead

	G5	G6	KM1024i	Seiko α-L
Print Width	54.1mm	54.1mm	72mm	72mm
Drop Volume	Binary mode: 7pl Grey-scale mode : 7-35pl	Binary mode :5pl Grey-scale mode : 5-15pl	Binary mode :13pl Grey-scale mode : 8pl	Binary mode :25pl
Jetting Frequency	30kHz	50kHz (3 levels) 40kHz (4 levels)	45kHz	30kHz
Resolution Ratio	600dpi	600dpi	360dpi (90dpi×4)	360dpi
Speed	Up to 100m/min	Up to 150m/min	Up to 120m/min	Up to 420m/min
Environment Humidity	Below 70%	Below 70%	Below 70%	5-90%
Environment Temperature	5℃ to 45℃	5℃ to 45℃	5℃ to 45℃	-10℃ to 40℃
Dimensions (L×W×H)	89×24.51×69mm	89×24.51×66.3mm	131×18×94mm	137×38×115.7mm
Number of Channels	2	2	1	2

Technical Data of Ink

Ink Model	1902KA	1904G4	1705	1806 kation
Printhead Types	G5/G6	G5/G6	G5/G6/Seiko	G5/G6/Seiko
Decap Time	>4H	>4H	>1H	>4H
Speed	90-120m/min	80-100m/min	80-100m/min	80-100m/min
Darkness (100 is Optimal)	90%	90%	80%	80%
Paperboard
Coated Paper
Ink Coated
PET
Nylon
PE
Features	Low viscosity, good fluency, less missing line	Good adhesion on oil	Scratch resistance, rubbing resistance, good adhesion	Scratch resistance, rubbing resistance, 75% alcohol resistance, solvent resistance
Application	Cigarette pack, medicine pack, paper	Cigarette pack, medicine pack, paper	Woven bag packaging and various types of film	Chinese medicine package, medical products, prefabricated vegetable packaging
Ink Model	1703G kation	1703B blue/yellow ink	PEL	TVW
Printhead Types	G5/G6/Seiko	Seiko	G5/G6	G5/G6
Decap Time	>20min	>1H	>4H	>4H
Speed	80-100m/min	80-100m/min	80-150m/min	80-150m/min
Darkness (100 is Optimal)	80%	blue/yellow	90%	90%
Paperboard
Coated Paper
Ink Coated
PET
Nylon
PE
Features	Waterproof, high and low temperature resistance	Goodtensile toughness good adhesion	Good adhesion, scratch resistance	Scratch resistance, rubbing resistance
Application	Hot pot package, lunch box package	Plastic film and greenhouse film coding	Cigarette pack, medicine pack, paper	Cigarette pack, medicine pack, paper

Excellent
Recommend
Not recommend

Features

Utilizes ultraviolet light to immediately cure the ink as it is printed, producing durable, scratch-resistant, and waterproof results.
Capable of printing directly on rigid and flexible substrates, including glass, wood, metal, plastics, and textiles, making it suitable for a variety of industrial and creative applications.
Eliminates the need for solvent-based chemicals or heat drying, reducing harmful emissions and supporting sustainable practices.
Offers fast output times with minimal waste, enhancing productivity for both high-volume and custom printing needs.
