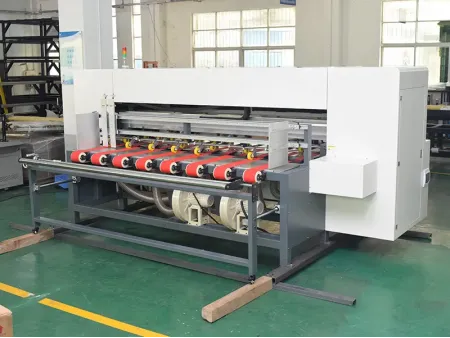

YD-C2500

(One-Pass Printing for Corrugated Packaging)

Features
  • Corrugated UV inkjet printer is equipped with Epson industrial printheads, with a maximum print width of up to 2500mm.
  • Utilizes belt technology for continuous high-speed printing, this printer is adjustable from 1 to 4 color models without the need for electroplating or skilled workers. Orders can be changed within a minute.
  • With fully automatic leading-edge paper feeding, this printer is suitable for uninterrupted production of products such as folding boxes, cartons, paper boxes, various types of A, B, C, E corrugated cardboard, honeycomb cardboard, and all water-absorbent materials.
  • Printing width can be customized according to requirements to meet the needs of different manufacturers for large or small batch production, eliminating the cumbersome plate-making process.
  • This printing machine features saved warehouse space, environmental protection, no pollution, low power consumption and CMYK computer color grading.
  • The use of specialized dye ink makes this printer leading in the industry in terms of waterproofing and color display effects.

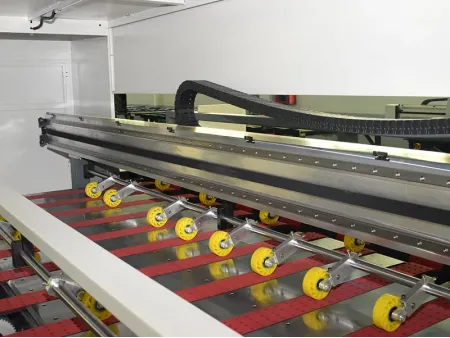

  • 12 independent belt conveyors with large load-bearing capacity, allows for easy and accurate transporting of even overweight materials, convenient inspection and maintenance.
Printing Samples
Specifications
Model YD-C2500
Print area 2500mm
Printhead Epson i3200 micro-piezo printhead
Resolution 360x600dpi(1pass) 360x1200dpi(2pass)
Print speed 1-700㎡/h
Ink injection Automatic continuous
Ink configuration C, M, Y, K
Ink type Water-based dye ink / water-based pigment ink
Printhead quantity 8 (optional)
Material thickness 2-30mm
Max. Material width 2500mm
Feeding Automatic lead edge feeding, conveyor belt adsorption servo precise feeding
Rip software MainTop / PhotoPrint
File formats PDF, JPEG, TIFF
Operating system Win10, X64
Voltage 220V/AC (±10%),50Hz/60Hz, 10kW
Weight 2100kg
Dimensions (L x W x H) 4260mm x 2000mm x 1800mm
Working environment Temperature: 20°C~25°C
Humidity: 50%-70%
