60mm 6W Brake Motor

Request a Quote

View All: http://zd-drivers.com/1-4-1-brake-ac-gear-motor.html

Motor Specifications

Model	Rating	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
2RK6GN-AM	30min	6	1ph 100	50	0.265	60	48	1200	4.0
				60	0.232	55	40	1450
2RK6GN-EM	30min	6	1ph 110	60	0.185	45	40	1450	2.5
			1ph 120		0.200
2RK6GN-CM	30min	6	1ph 220	50	0.145	55	48	1200	1.0
			1ph 230		0.150
2RK6GN-HM	30min	6	1ph 220	60	0.145	60	40	1450	1.0
			lph 230		0.150
2RK6GN-SM	30min	6	3ph 220	50	0.076	85	48	1200	-
				60	0.065	70	40	1450
2RK6GN-S3M	30min	6	3ph 380	50	0.044	85	48	1200	-
				60	0.038	70	40	1450

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
2RK6GN-AM 2RK6GN-EM 2RK6GN-CM 2RK6GN-HM 2RK6GN-SM 2RK6GN-S3M	2GN()K	50Hz	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.49	0.58	0.70	0.75	0.88	1.10	1.30	1.39	1.60	1.90	2.40	2.90	3.00	3.00	3.00	3.00	3.00
	2GN()K	60Hz	0.10	0.12	0.16	0.19	0.24	0.29	0.32	0.41	0.49	0.58	0.62	0.73	0.88	1.10	1.15	1.30	1.60	2.00	2.40	2.60	3.00	3.00	3.00	3.00

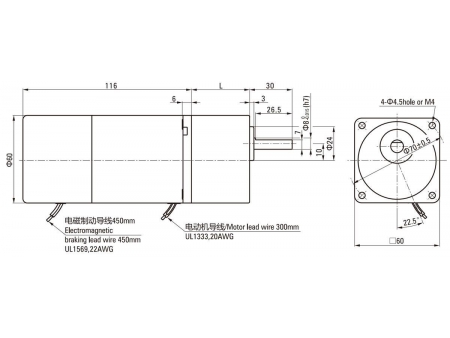

L1=41.5mm
