60mm 6W Reversible Motor

Request a Quote

View All: http://zd-drivers.com/1-3-1-reversible-ac-gear-motor.html

Motor Specifications (Continuous Rating)

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
2RK6GN-A	6	1ph 100	50	0.265	60	48	1250	4.0
			60	0.232	55	40	1450
2RK6GN-E	6	1ph 110	50	0.185	45	40	1450	2.5
		1ph 120	60	0.200
2RK6GN-C	6	1ph 220	50	0.145	55	48	1200	1.0
		1ph 230	60	0.150
2RK6GN-H	6	1ph 220	50	0.145	40	60	1450	1.0
		1ph 230	60	0.150

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	2.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
2RK6GN-A 2RK6GN-E 2RK6GN-C 2RK6GN-H	2GN()K	50Hz	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.49	0.58	0.70	0.75	0.88	1.10	1.30	1.39	1.60	1.90	2.40	2.90	3.00	3.00	3.00	3.00	3.00
2RK6GN-A 2RK6GN-E 2RK6GN-C 2RK6GN-H	2GN()K	60Hz	0.10	0.12	0.16	0.19	0.24	0.29	0.32	0.41	0.49	0.58	0.62	0.73	0.88	1.10	1.15	1.30	1.60	2.00	2.40	2.60	3.00	3.00	3.00	3.00

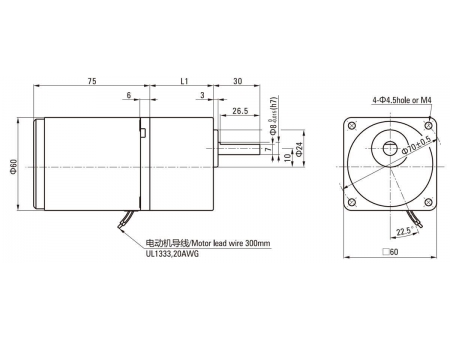

L1=41.5mm

Applications

Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.

Packaging Equipment Carton sealers, kraft paper packaging machines.

Semiconductor Manufacturing: Precision handling and assembly equipment.

Battery Manufacturing Lithium battery processing systems.

Intralogistics Conveyor systems for logistics and warehousing.

Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.

Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.

Textile Industry Textile production equipment.

Livestock Management Manure removal systems, pig farming equipment, feeding systems.

Inspection Systems Security inspection machines.

Dust Removal Systems Industrial dust removal equipment.

Injection Molding Auxiliary systems for injection molding machines.

Access Control Systems Speed gates, channel gates.
