60mm 6W Speed Control Motor Manufacturer

60mm 6W Speed Control Motor

Request a Quote

View All: http://zd-drivers.com/1-2-1-speed-control-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
2IK6RGN-A	6	1ph 100	50	90～1350	50	30	35	0.240	3.5
			60	90～1650	50	29	35	0.250
2IK6RGN-E	6	1ph 110	60	90～1650	50	29	30	0.160	2.0
		1ph 120						0.180
2IK6RGN-C	6	1ph 220	50	90～1350	55	29	35	0.130	0.8
		1ph 230						0.110
2IK6RGN-H	6	1ph 220	60	90～1650	55	29	35	0.140	0.8
		1ph 230						0.120

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	2.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
2IK6RGN-A 2IK6RGN-E 2IK6RGN-C 2IK6RGN-H	2GN()K	50Hz	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.49	0.58	0.70	0.75	0.88	1.10	1.30	1.39	1.60	1.90	2.40	2.90	3.00	3.00	3.00	3.00	3.00
2IK6RGN-A 2IK6RGN-E 2IK6RGN-C 2IK6RGN-H	2GN()K	60Hz	0.10	0.12	0.16	0.19	0.24	0.29	0.32	0.41	0.49	0.58	0.62	0.73	0.88	1.10	1.15	1.30	1.60	2.00	2.40	2.60	3.00	3.00	3.00	3.00

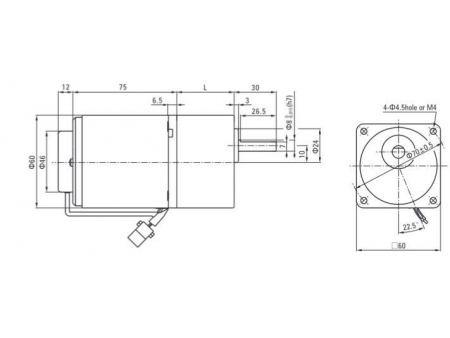

L1=41.5mm
