Massage Bathtub Controller

Request a Quote

Website: http://dxd-poolpump.com/1-4-1-massage-bathtub-controller.html

DXD-C003

Model			DXD-C003	DXD-C006
Operation interface	Press button		●	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●
	Water pump protection for no water		*	*
	Time control		*	*
	Blower control	Blower AC230V/1.5HP MAX	*	*
	Bottom light control	Bottom light AC12V/3W MAX	*	*
	Water level measurement	Water level probe	*	*
	Water level measurement	Capacitive liquid level sensor	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-C006

Model			DXD-C003	DXD-C006
Operation interface	Press button		●	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●
	Water pump protection for no water		*	*
	Time control		*	*
	Blower control	Blower AC230V/1.5HP MAX	*	*
	Bottom light control	Bottom light AC12V/3W MAX	*	*
	Water level measurement	Water level probe	*	*
	Water level measurement	Capacitive liquid level sensor	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-C005

Model			DXD-C008	DXD-C005
Operation interface	Touch key	Capacitive touch key	●	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●
	Water pump protection for no water		*	*
	Time control		*	*
	Blower control	Blower AC230V/1.5HP MAX	*	*
	Bottom light control	Bottom light AC12V/3W MAX	*	*
	Water level measurement	Water level probe	*	*
	Water level measurement	Capacitive liquid level sensor	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A006/B

Certificate: CE, TÜV, UKCA

Model			DXD-A006/G	DXD-A006/B	DXD-A006/M
Operation interface	Press button			●
Operation interface	Touch key	Capacitive touch key	●		●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●	●
	Blower control	Blower AC230V/1.5HP MAX	●	●	●
	Bottom light control	Bottom light AC12V/3W MAX	*	●	●
	Ozone control	Ozone generator AC12V/9W MAX	*	*	*
	Air regulation	Air regulator AC12V/3W MAX	*	*	*
	Air regulation	Solenoid valve DC12V/7W MAX	*	*	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX		●	●
	Auto cleaning	Clean valve DC12V/7W MAX	*	*	*
	Water level measurement	Water level probe	*	*	*
	Water level measurement	Capacitive liquid level sensor	*	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A006/M

Certificate: CE, TÜV, UKCA, UL

Model			DXD-A006/G	DXD-A006/B	DXD-A006/M
Operation interface	Press button			●
Operation interface	Touch key	Capacitive touch key	●		●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●	●
	Blower control	Blower AC230V/1.5HP MAX	●	●	●
	Bottom light control	Bottom light AC12V/3W MAX	*	●	●
	Ozone control	Ozone generator AC12V/9W MAX	*	*	*
	Air regulation Air adjust	Air regulator AC12V/3W MAX	*	*	*
	Air regulation Air adjust	Solenoid valve DC12V/7W MAX	*	*	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX		●	●
	Auto cleaning	Clean valve DC12V/7W MAX	*	*	*
	Water level measurement	Water level probe	*	*	*
	Water level measurement	Capacitive liquid level sensor	*	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A013

Certificate: CE, TÜV, UKCA

Model			DXD-A013/A	DXD-A013/C
Operation interface	Press button		●	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●	●
	Blower control	Blower C230V/1.5HP MAX	●	●
	Bottom light control	Bottom light AC12V/3W MAX	●	●
	Ozone control	Ozone generator AC12V/9W MAX	*	*
	Air regulation	Air regulator AC12V/3W MAX	*	*
	Air regulation	Solenoid valve DC12V/7W MAX	*	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	*	*
	Auto cleaning	Clean valve DC12V/7W MAX	*	*
	FM radio	Speaker 8Ω/10W MAX	●	●
	CD	Speaker 8Ω/10W MAX	*	*
	MP3	Speaker 8Ω/10W MAX	*	*
	Bluetooth	Speaker 8Ω/10W MAX	*	*
	Remote control		*	*
	Water level measurement	Water level probe	*	*
	Water level measurement	Capacitive liquid level sensor	*	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A022/B

Certificate: CE, TÜV, UKCA

Model			DXD-A022/B
Operation interface	Press button		●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	BlowerAC230V/1.5HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	*
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

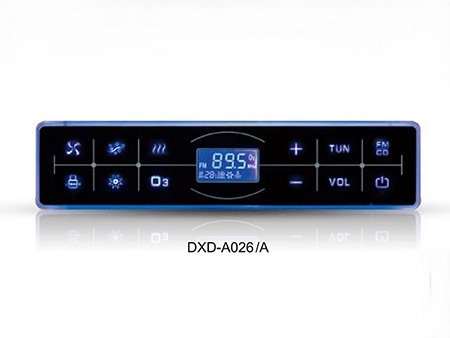

DXD-A026/A

Certificate: CE, TÜV, UKCA

Model			DXD-A026/A
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	*
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	FM radio	Speaker 8Ω/10W MAX	●
	CD	Speaker 8Ω/10W MAX	*
	MP3	Speaker 8Ω/10W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	*
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A032/A

Certificate: CE, TÜV, UKCA

Model			DXD-A032/A
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	*
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	FM radio	Speaker 8Ω/10W MAX	●
	CD	Speaker 8Ω/10W MAX	*
	MP3	Speaker 8Ω/10W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	*
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A033/A

Certificate: CE, TÜV, UL, UKCA

Model			DXD-A033/A
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	*
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.
