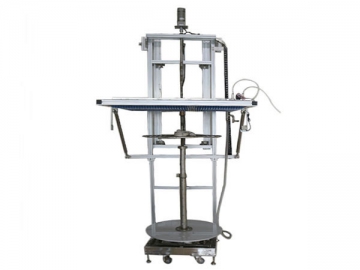

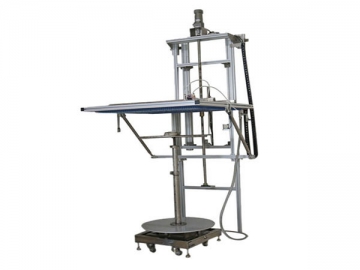

Vertical Drip Rain Testing Machine HH0801
Request a Quote
View All: http://hctestequipment.com
Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.
Application
It is used for the testing of IPX1 and IPX2.
Test sample
The rain testing machine is used to determine water proof functions for devices, such as electronic appliances, lamps, electrical cabinets, electrical components, and cars.
Feature

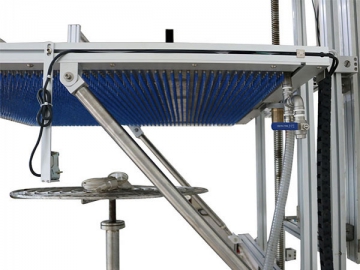

It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test. It is also equipped with a 15°bevel for supporting samples for the IPX2 test. This device features a clean water filtration unit which can prevent the pinholes from jamming, it is controlled by PLC electrical control system, and touch screen operation.
| Item | Parameter |
| Input power | Single-phase AC220V,50Hz |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension:WDH=1100×800×350mm, fully enclosed water tank, SUS304 material |
| Drip test area | 1000×600mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) | 1 0.05 0mm/min or 3 0.05 0mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Rotary table | Diameter:Φ600mm; Rotating speed1r/min. Can be paused 150s at four aspects,Load bearing≤150㎏electrical equipment |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted or floor type |
| Site requirements | Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | WDH =1500mm×1500mm×2650mm, the size can be set according to customer's requirements |
