Drip Coffee Packaging Machine (Standard Type)
Request a Quote
LQ-DC-1
Ultrasonic sealing and packaging machine for packaging drip bag coffee
Engineered for exceptional drip coffee packaging, our standard drip coffee bag packing solution combines precision and reliability through fully ultrasonic sealing. This solution is tailored to meet the unique demands of drip coffee packaging, ensuring every bag is perfectly sealed and aesthetically pleasing.

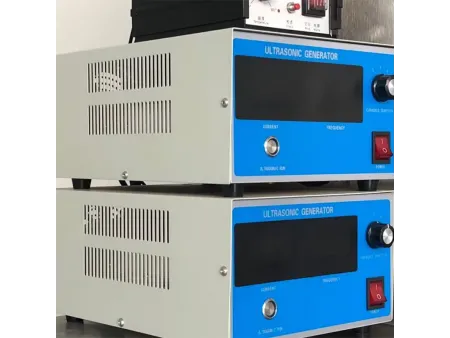

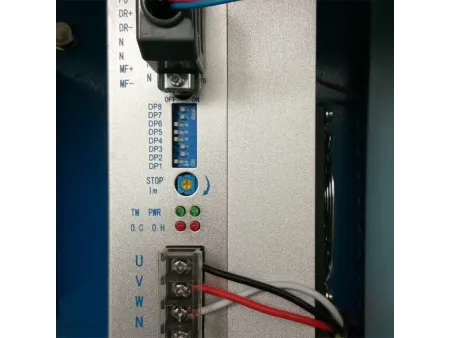

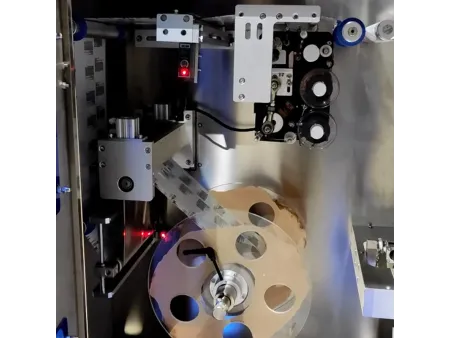

Main Components
Specifications
| Working Speed | 20-35 bags/min |

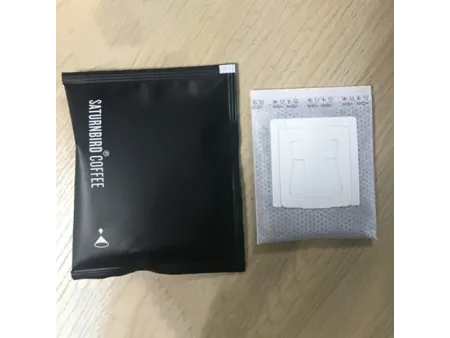

| Bag Size | Inner bag: L90mm×W70mm Outer bag: L120mm×W100mm |
| Outer Bag Type | Three sides sealing |

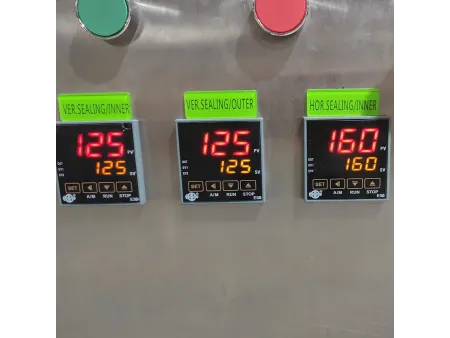

| Sealing Method | Inner bag: ultrasonic sealing Outer bag: heat sealing |
| Weighing System | Screw |
| Weighing Range | 8-12ml/bag |
| Filling Accuracy | ±0.2 grams/bag (depending on the coffee material) |
| Power Supply | 220V, 50Hz, 1Ph |
| Weight | 495kg |
| Overall Dimensions | 1440mm×1080mm×2220mm |
Features

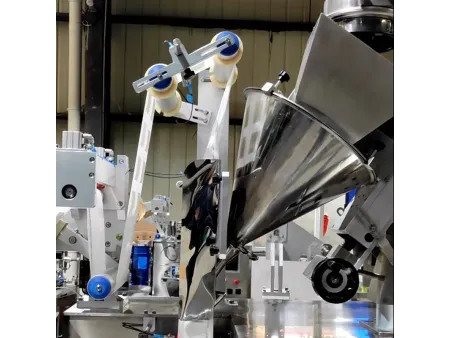

- The oblique screw feeder design eliminates jamming issues and guarantees high accuracy, making adjustments simple and efficient.

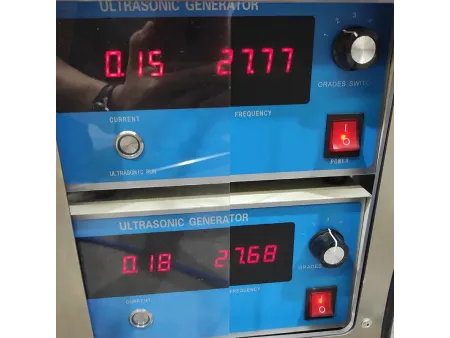

- With three-side ultrasonic sealing, this drip coffee packaging machine ensures superior sealing quality and enhances the overall packaging performance.

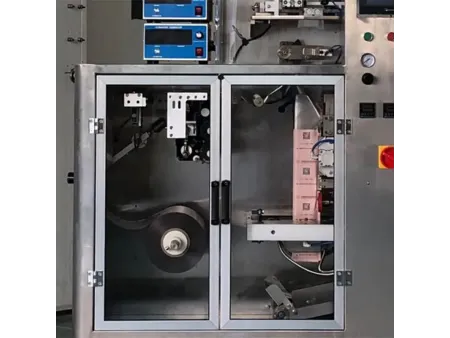

- Safety is a priority with the included safety guard door, which provides enhanced machine protection and ensures operators safety.
- The specialized outer air blowing system effectively prevents wrinkles, ensuring a smooth and professional finish for each package.
