Automatic Kettle Life Cycle Testing Machine HJ0635

Request a Quote

View All: http://hctestequipment.com

Standard
IEC 60335-2-15 household and similar electrical appliances – safety: part 2-15: particular requirements for appliances for heating liquids, clause 19.101, 19.102, 22.103.

Application
The device is used for life-span testing for various conventional cordless electric kettles.

Test Sample

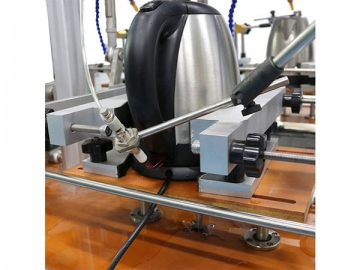

Cordless electric kettle

Feature
The testing equipment features a built-in adjustable load current and voltage that can be adjusted to apply the input of 0.85 times or 1.15 times power. The testing is performed 100 times for most accurate results.

Parameters

Power supply	AC220V 50Hz

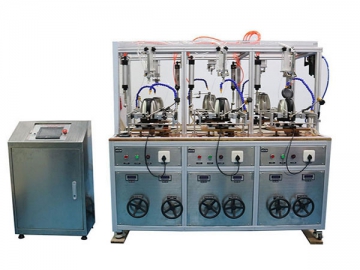

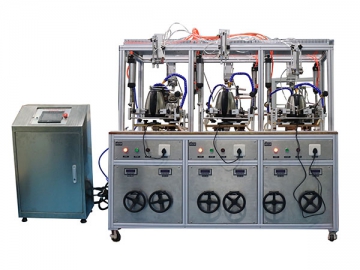

Stations	3 Stations, or 6 stations(can be custom made)
Control	MITSUBISHI PLC electric control, 7 inch color touch screen operation
Basic function	Including dry burning mode (self cooling), dry heating mode (water cooling), plug-in mode (electricity), plug-in mode (no electricity), boiling water mode 5 test functions: 1. dry burning mode (self cooling): start – pouring – reset – dry burning - dry end (thermostat trip) - natural cooling to the thermostat reset - cycle dry burning 2. dry heating mode (water cooling): start – pouring – reset – dry burning - dry end (thermostat trip) –filling water cooling to the thermostat reset - cycle dry burning 3. plug-in mode (no electricity): start – cycle plug and withdraw 4. plug-in mode (electricity): start – filling water – live plug in and withdraw – cycle – interval replace water - cycle 5. burning mode: start - pouring – reset – filling water – heating - boil (thermostat trip) - pouring - reset - cycle

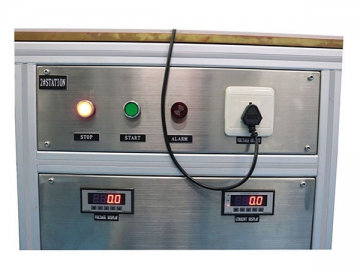

Load	Display test voltage and current of each station
Conduction count	alarm and shutdown when not conducting
Test times	0-999999 preset, automatic stop when test time finished
Main configuration	The frame adopts aluminum alloy tube production; and the box door paint; main water contact part adopts 304 stainless steel or aluminum alloy
Air source	This machine needs to use compressed air, air pressure -0.6MPa 0.4MPa
Test modes	1) boiling water mode
	2) plug-in mode (electricity)
	3) plug-in mode (no electricity)
	4) hot and cold dry heating mode (water cooling)
	5) hot and cold dry burning mode (self cooling)
Control parameters	1) pouring time: 1~9999 (S); pouring reset: 1~9999 (S)adjustable
	2)filling time: 1~9999 (S); cooling time: 1~9999 (S)adjustable
	3)conduction time: 1~9999 (S); no conduction time: 1~9999 (S)adjustable
	4)rest times: 1~9999 (times); rest time: 1~9999 (S)adjustable
	5)test times: 1~9999 (times); actual counting: 1~9999 (times)adjustable
Alarm	1) alarm when preset times completed
	2) no conduction alarm(boiling water mode; plug-in mode (electricity); drying heating mode)
	3) when equipment fails, manual operation can be taken, and the independent operation of each station do not affect each other
