LGJ-160

High speed mixer granulator combining powder mixing and wet granulation

Above 50 Kilograms Per Hour
Ø160 mm Roller Diameter
60 mm Roller Width

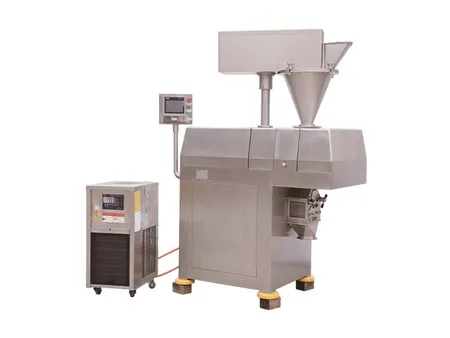

The dry granulator is designed for dry granulation processes and is suitable for the pharmaceutical, food, and chemical industries. This granulation machine efficiently produces high-quality granules through a two-step process of compaction and milling, ensuring the granules meet the required density, particle size distribution, and porosity standards.

Key Features

High quality and uniform granule production achieved through compression between two rollers running in opposite directions
Gently processes materials during compaction, maintaining their original properties to the greatest extent possible
Processes ≥50kg of material per hour, making it suitable for large-scale granulation
Features vertically aligned rollers and advanced control logic to ensure uniform thickness and density of flakes, resulting in consistent granule quality

Specifications

Production Capacity	≥50kg/hour	Roller Diameter × Width	Ø160×60mm
Feeding Motor Power	1.1kW	Feed Screw Speed	10-64rpm
Compaction Motor Power	3kW	Roller Speed	5-34rpm
Granulation Motor Power	0.75kW	Granulation Speed	50-129rpm
Hydraulic Pump Motor Power	0.75kW	Hydraulic Pump Pressure	22MPa
Total Power	5.6kW	Hydraulic Cylinder Pushing Force	2×20t
Machine Dimensions	1700×930×2040mm
Machine Weight	1350kg
Distance Between Two Rollers	0.25-2mm (the gap between two compaction rollers is adjustable based on the material properties)
