Wet Granulator

Request a Quote

View All: http://pharmaequip-en.com/1-4-1-wet-granulator.html

Pharmaceutical Machinery

Solid Dosage

GHL-100

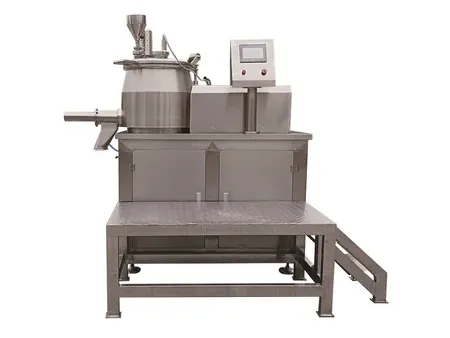

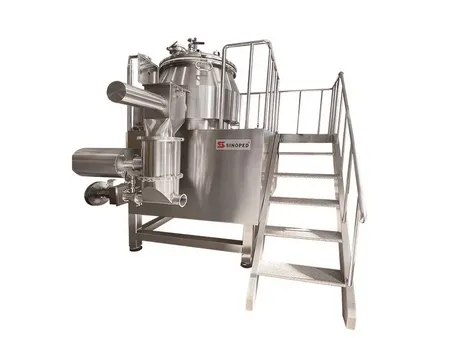

High speed mixer granulator combining powder mixing and wet granulation

30 Kilograms Per Batch
100 L Bowl Volume

The high-speed mixer granulator is an efficient machine that integrates powder mixing and wet granulation in a single process. It is widely used in the pharmaceutical industry for granule preparation, as well as in food and chemical granulation applications.

Key Features

Available with a horizontal cylindrical or conical structure, offering users flexible options
Features a seamless internal surface with no dead corners, operating in a sealed state in conformance to the GMP standard
Produces high quality uniform granules with excellent flowability, making them ideal for tablet production.
Reduces binder usage by 25% and shortens drying time compared to traditional methods
Each batch requires only 2 minutes of dry mixing and 1-4 minutes of granulation, improving efficiency by 4-5 times compared to conventional processes
Equipped with an emergency stop and anti-explosion system, ensuring strict safety protocols during operation
Achieves consistent blending of active ingredients and excipients, even with significant differences in material properties, without delamination

Specifications

Model	GHL-100
Production Capacity	30kg/batch
Bowl Volume	100L
Agitator Motor Power	6.5/8kW
Agitator Speed	200/400rpm
Chopper Motor Power	2.4/3kW
Chopper Speed	1500/3000rpm
