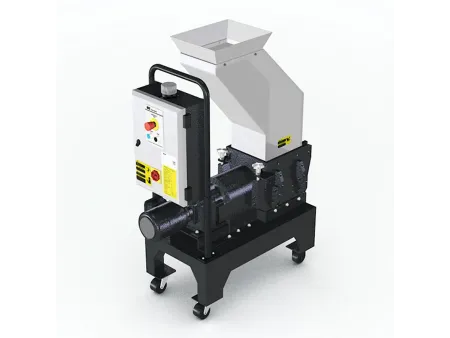

Screenless Granulator, NMS
Request a Quote
Screenless granulator is used for crushing and recovery of rejected rigid plastic products and edge trims form injection molding process, ideal for injection molding workshop.
Features:
- Low speed, low noise level
- Special surface treatment of machine body, good corrosion resistance
- Feed hopper is designed with double walled stainless steel structure
- Open design of crushing chamber, easy to clean
- Crushing process is visible
Specification
| Power | 1.1KW | 1.5KW | 2.2KW |
| Material of knives | SKD-11 | SKD-11 | SKD-11 |
| Heat treatment | 58 degree | 58 degree | 58 degree |
| Knife type | teeth cutter | ||
| Rotating speed (rpm) | 23 | 23 | 23 |
| Rated throughput | 15-20 (kg/h) | 20-25(kg/h) | 25-30(kg/h) |
| Crushing chamber (L*W) | 315*248mm | 315*315mm | 410*315mm |
| Dimension (L*W*H) | 900*450*1200mm | 1100*500*1480mm | 1200*500*1560 |
| Weight | 205kg | 275kg | 315kg |
